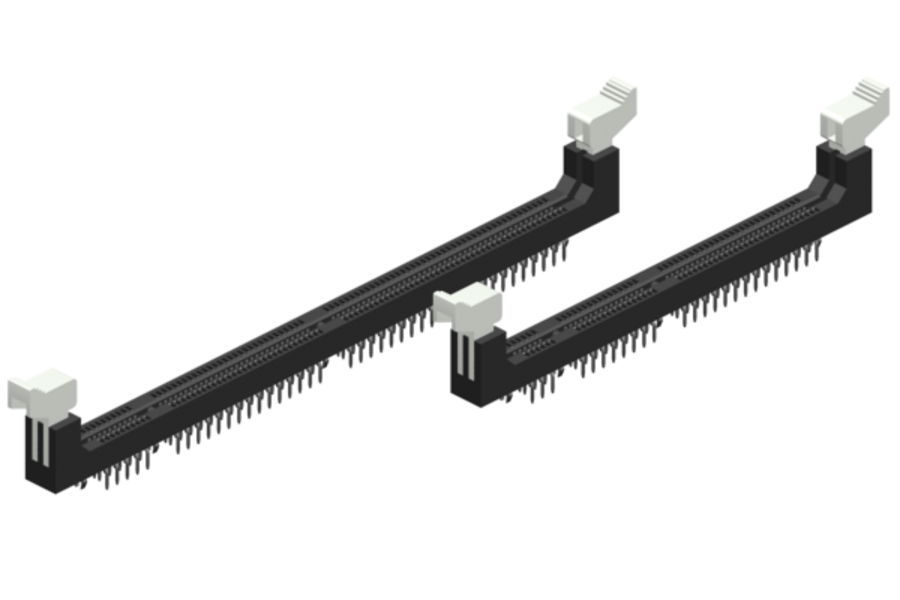

100-/168-pin vertical socket types

Series: DM1-100-VXX9/A-95/L

100-pin for UD-RAM modules 3,3V. 168-pin for D-RAM, SD-RAM and UD-RAM modules 3,3V and 5,0V. The sockets have selective gold-plated contacts. Tin in soldering, and gold in contact area.

Version

100-pin
168-pin

Download

100-/168-pin vertical socket types

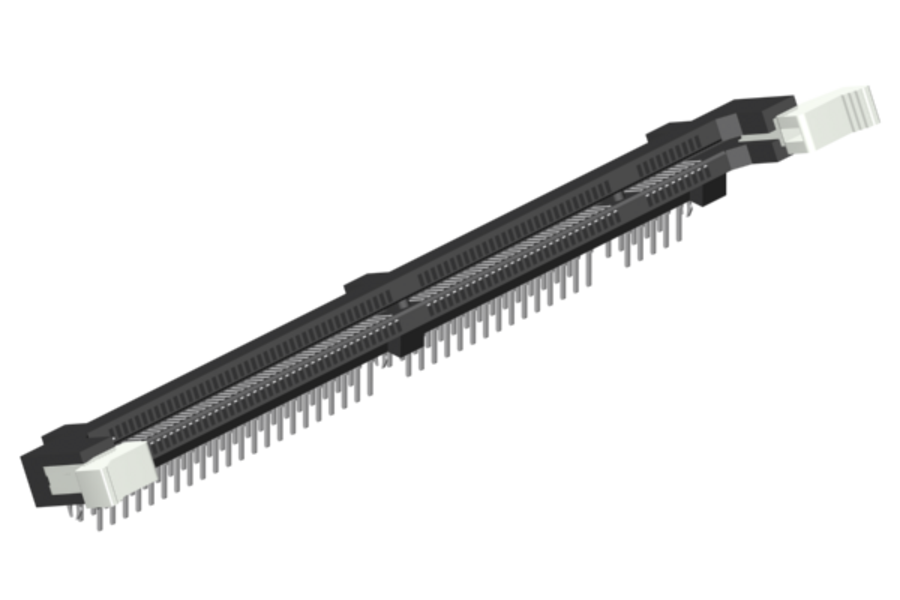

168-pin slanted (25°) socket type

Series: DM1-168-SCA8-95/1L

For D-RAM, SD-RAM and UD-RAM modules in 3,3V version. The socket with selective gold-plated contacts. Tin on soldering, and gold in contact area.

Version

168-pin

Download

168-pin slanted (25°) socket type

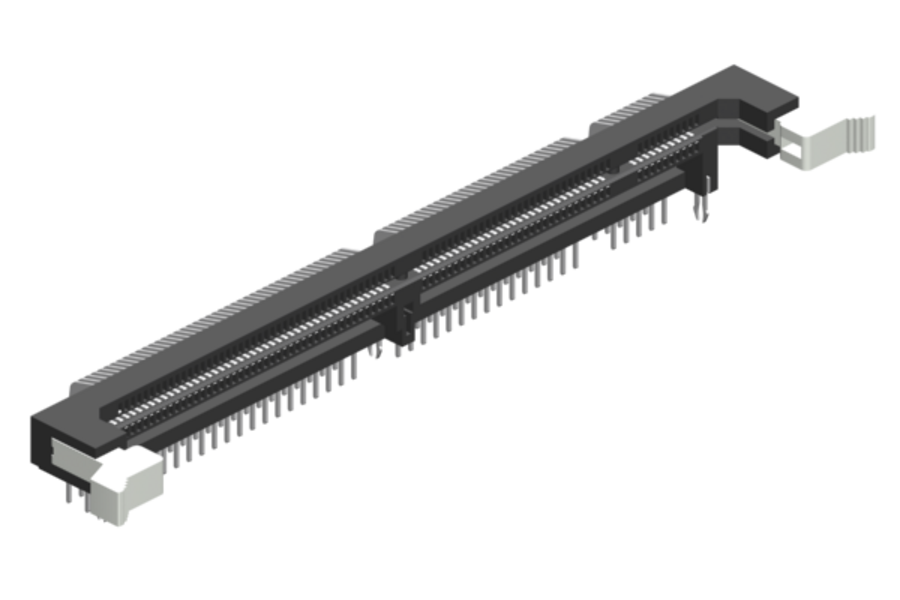

168-pin horizontal (90°) socket type

Series: DM1-168-RCA9-95/1L

For UD-RAM modules in 3,3V version. The socket with selective gold-plated contacts. Tin on soldering, and gold in contact area. End-of-life ! Please ask for availability !

Version

168-pin

Download

168-pin horizontal (90°) socket type

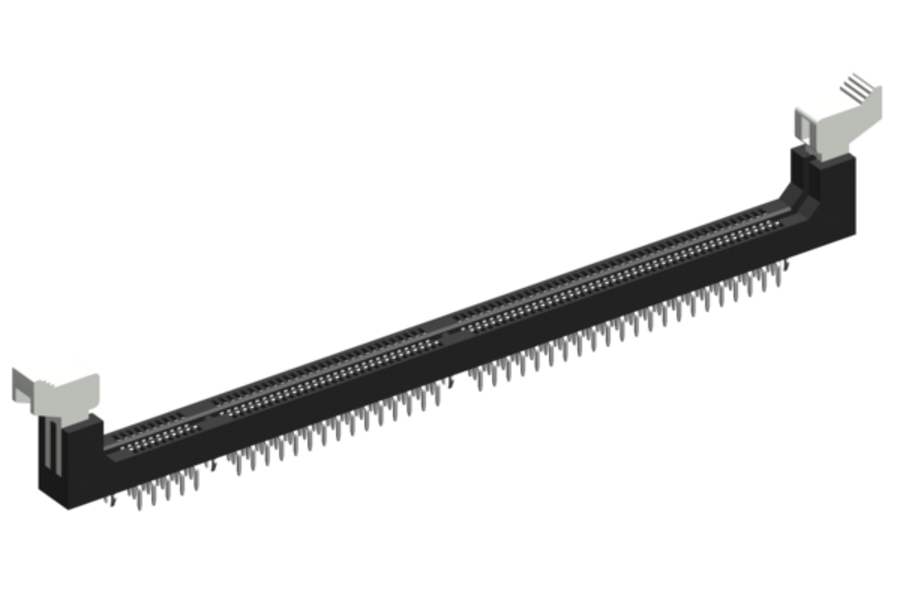

184-pin vertical DDR socket type

Series: DR1-184-VBZ9-95/1L

For DDR modules in 2.5V version. The socket with selective gold-plated contacts. Tin in soldering, and gold in contact area. Other versions on request.

Version

184-pin

Download

184-pin vertical DDR socket type

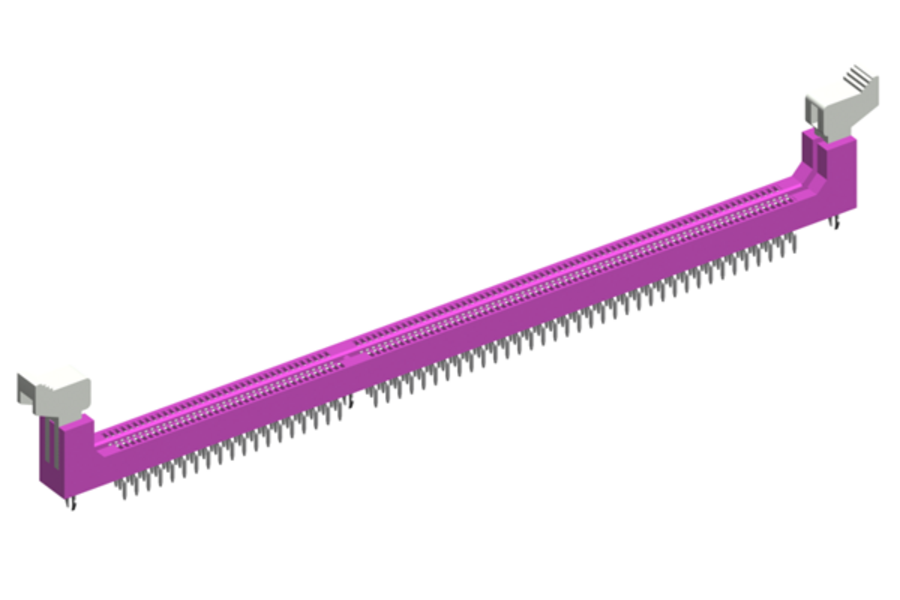

240-pin DDR-III

Series: DR1-240-VAZ9-95/0LX

For DDR III modules in 1,5V version. The socket in "pink", "green" or "black" with selective gold-plated contacts. Tin in soldering, and gold in contact area.

Version

240-pin

Download

240-pin DDR-III
