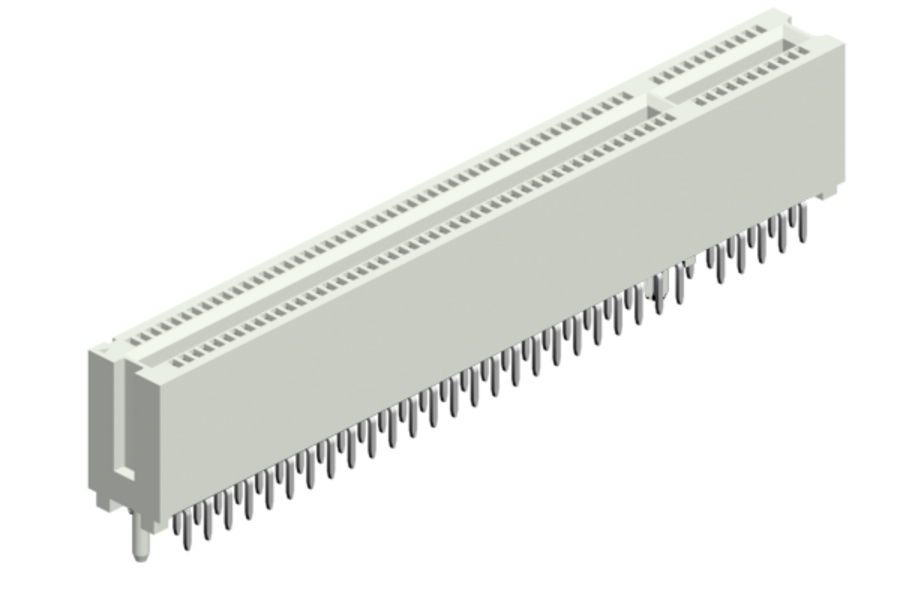

PCI connectors

Series: ECC-1xx-P05x-95

The PCI "card edge" connectors pitch 1.27mm have a highly reliable two-way contact to provide secure PCB connections. PCB thicknesses of 1.57mm ± 0.18 are supported.



  • PCI 32bit (120 contacts)
  •

  • PCI 64bit 3.3V (184 contacts)
  •

  • PCI 64bit 5V (184 contacts)
  •

Pitch

1.27mm

Download

PCI connectors

Slot connectors

The "card edge" connectors with pitch 1.27mm and 2.54mm have a highly reliable double contact for secure PCB connections. PCB thicknesses of 1.57mm ± 0.18 (pitch 1.27mm) as well as 1.37mm to 1.78mm (pitch 2.54mm) are supported. Connectors with mounting flange or solder pads for manual soldering are also available.

Available pitch: 1.27mm / 2.54mm

Slot connectors
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.27mm ECC-xxx-S050-xx/X
2.54mm ("X" Contact Style) ECC-xxx/X-X100-xx
2.54mm ("M" Contact Style) ECC-xxx-XC100-xx
