Module Connectors / Card Edge

Module Connectors / Card Edge

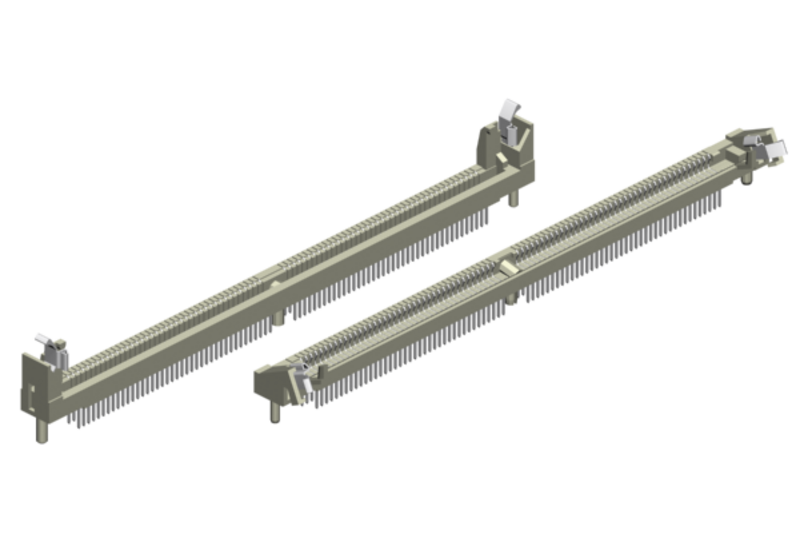

  • SIMM sockets
    SIMM sockets

    In Through-hole technology, vertical and 26° slanted version 72- and 80-pin. The vertical socket is also called "reverse".

    Product details

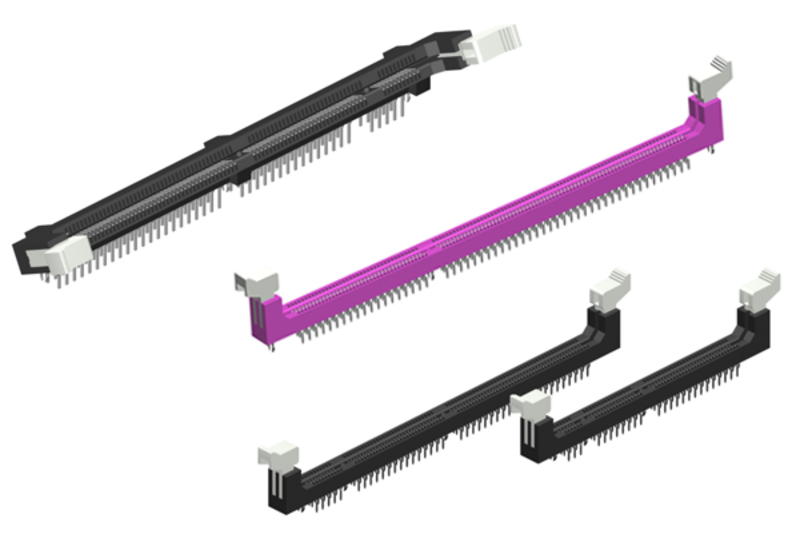

  • DIMM sockets
    DIMM sockets

    In Through-hole Technology vertical, horizontal 25° and 90° for 100- and 168-pin 3,3V and 5,0V modules, and 184-pin 2,5V modules. For DDR I, II and III modules 184-pin 2,5V & 240-pin 1,5V

    Product details

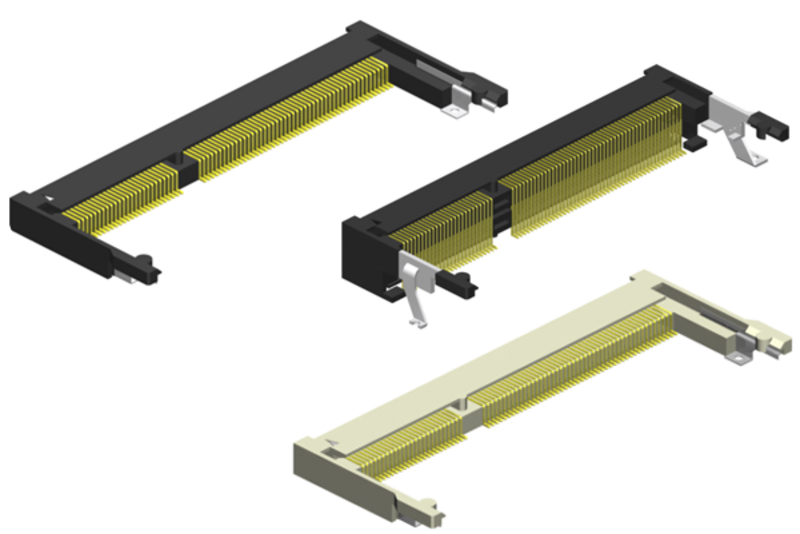

  • SO-DIMM sockets
    SO-DIMM sockets

    All in SM technology with punched precision contacts. For SGRAM and DRAM 3.3V and 5.0V types 144-pin, 200-pin for 1.8V and 2.5V, as well as 204-pin for 1.5V DDR modules. A "piggyback" version is also available for DRAM modules. This means 2 modules are placed one above the other.

    Product details

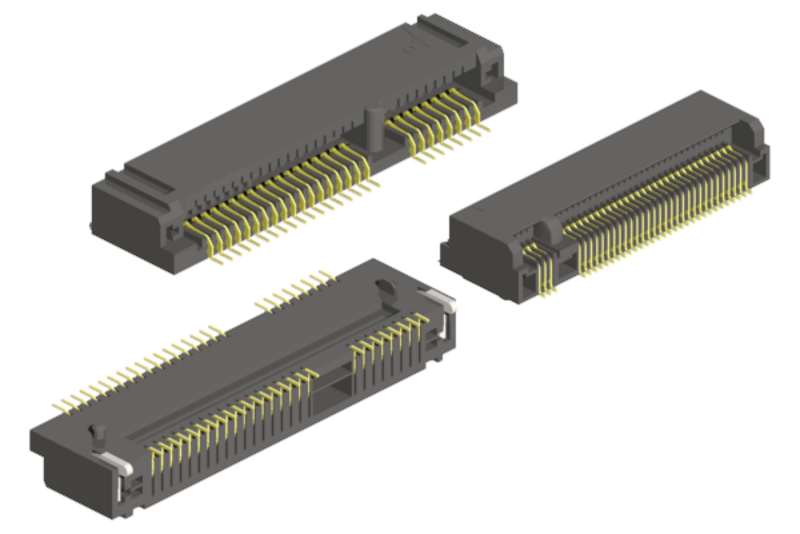

  • Mini PCI-Express and M.2 (NGFF) Connectors
    Mini PCI-Express and M.2 (NGFF) Connectors

    Mini PCI ExpressCard socket with a pitch of 0.80mm with 52 contacts. 9 different heights, from 4.00mm to 9.90mm.

    M.2 (NGFF) 3.55mm, 4.05mm and 4 key options (A, B, E and M) are available in pitch 0.50mm with 75 contacts, 2 heights.

    Product details

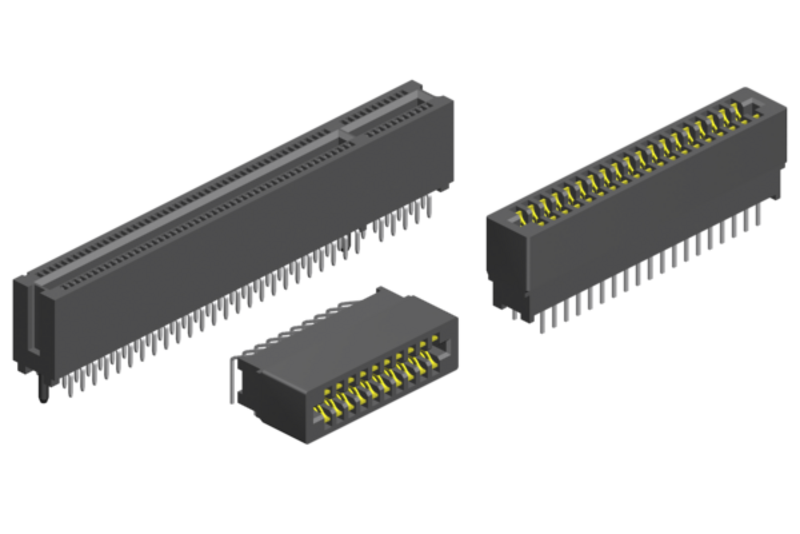

  • Card Edge Connectors
    Card Edge Connectors

    1.27mm pitch for PCI 32bit and PCI 64bit.
    2.54mm pitch vertical and horizontal.
    In addition to the Through-hole soldering (THT), SMT versions are also available.

    Product details
