D-Sub standard version

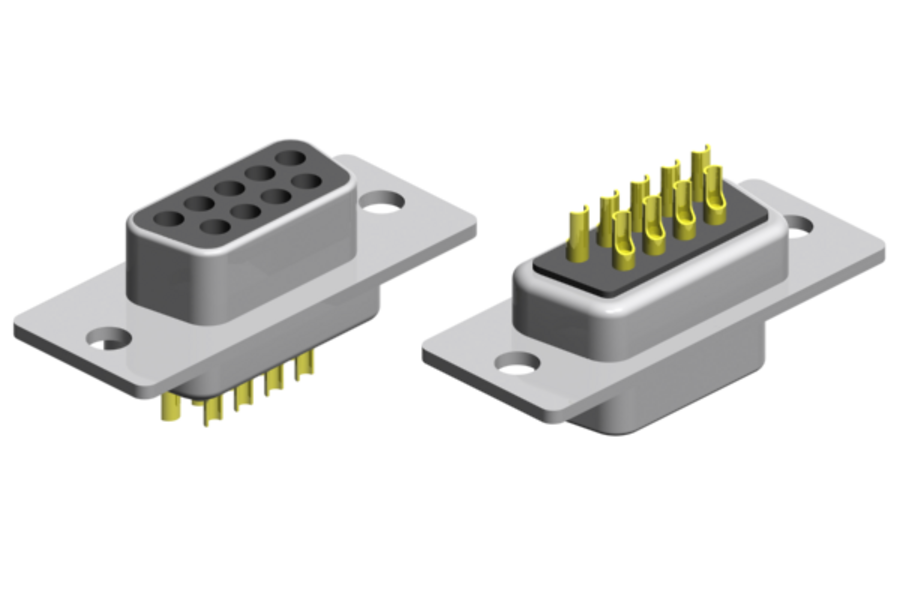

"solder cup" version ( for hand soldering )

Series: SDX-xxx-S101-xx/XX

Hand soldering in "female" and "male".

You solder your cable yourself and provide it with a hood (see data sheet D-Sub accessories and hoods).

Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.

Version

9-pin
15-pin
25-pin
37-pin

Download

"solder cup" version ( for hand soldering )

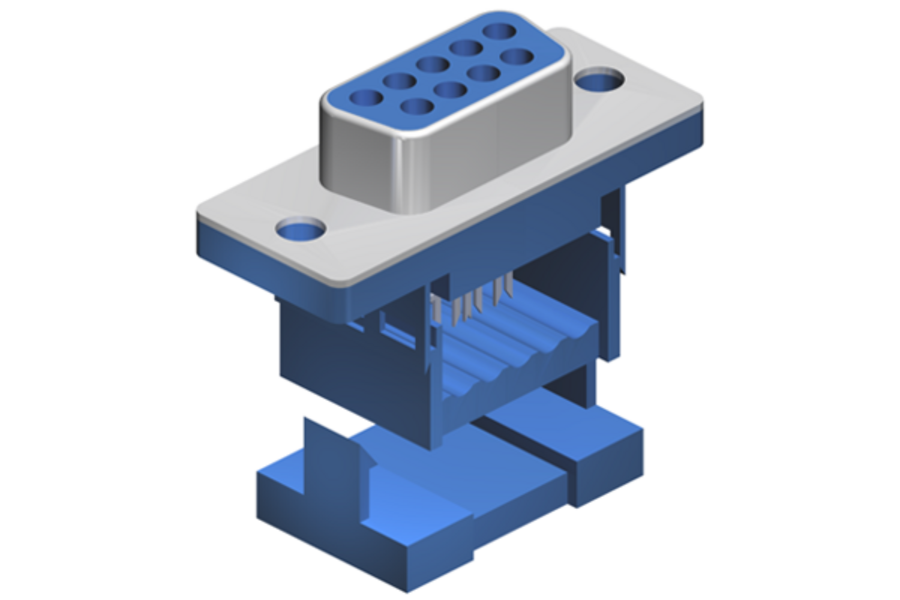

IDC - version

IDC in "female" and "male" as "all plastic" / "metal shell" version. You can attach a flat-ribbon cable yourself. It can also be used without a hood.

Of course, we also offer you completly assembled with cable and terminated other end to customer requirement.

Available in 9-, 15- 25- and 37-pin

IDC - version
show details
Type Series Download Download Additional 3D / IGES / STEP
Metal Shell Type SKX-xxx-S201-xx/XX
All Plastic Type SKX-xxx-S202-xx/XX

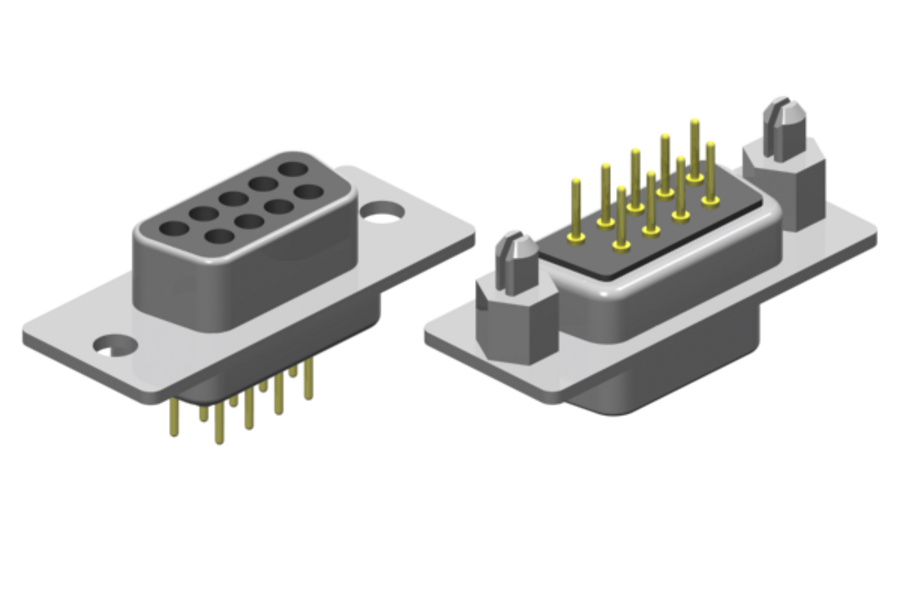

THT version -vertical- standard height

Through-hole soldering in "female" and "male", vertical with a board distance of 6.00mm up to the mounting collar.

You can choose between distance bolts and distance angles.

Available in 9-, 15- 25- and 37-pin

THT version -vertical- standard height
show details
Type Series Download Download Additional 3D / IGES / STEP
Female SDF-xxx-S111-xx/XXX
Male SDM-xxx-S111-xx/XXX

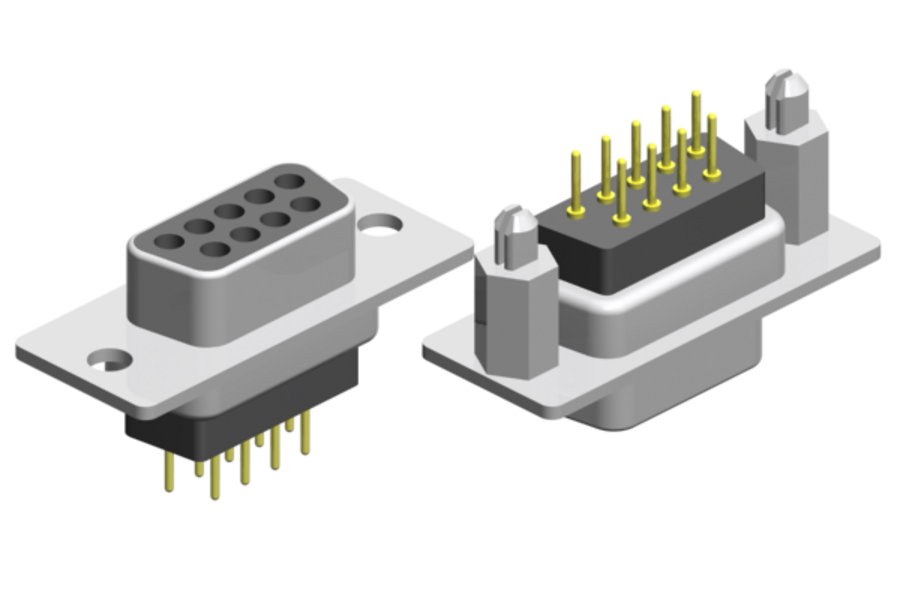

THT version -vertical- "raised" height

Through-hole soldering in "female" and "male", vertical with a board spacing of 11.00mm, 12.70mm, 13.50mm and 14.50mm up to the mounting collar.

Only available with distance bolts.

Available in 9-, 15- 25- and 37-pin

THT version -vertical- "raised" height
show details
Type Series Download Download Additional 3D / IGES / STEP
Female SDF-xxx-B111-xx/XXX
Male SDM-xxx-B111-xx/XXX

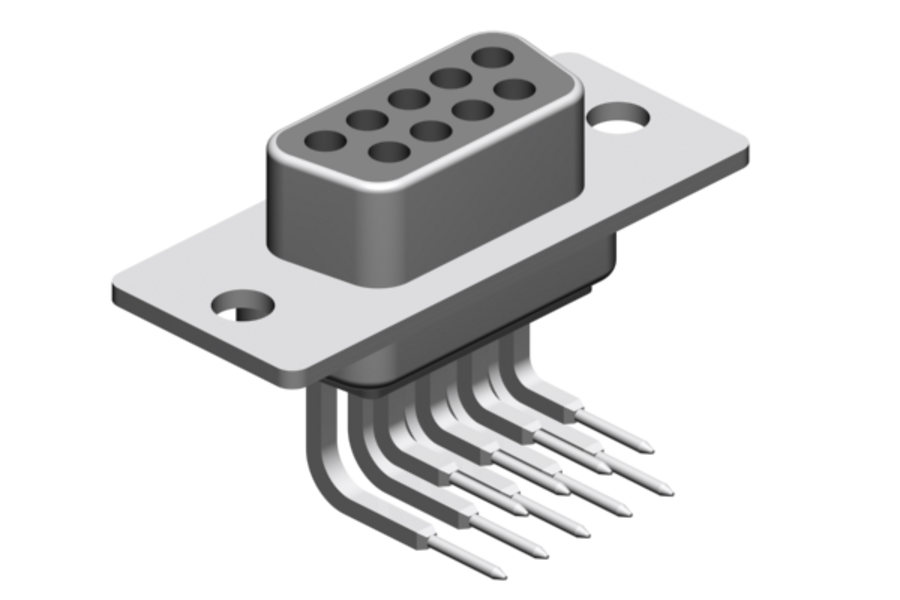

THT version -90°- open body without mounting brackets

Series: SDX-xxx-X901-xx/XxXX

Through-hole soldering version in "female" and "male", horizontal as open body without mounting bracket.

Version

9-pin
15-pin
25-pin
37-pin

Download

THT version -90°- open body without mounting brackets

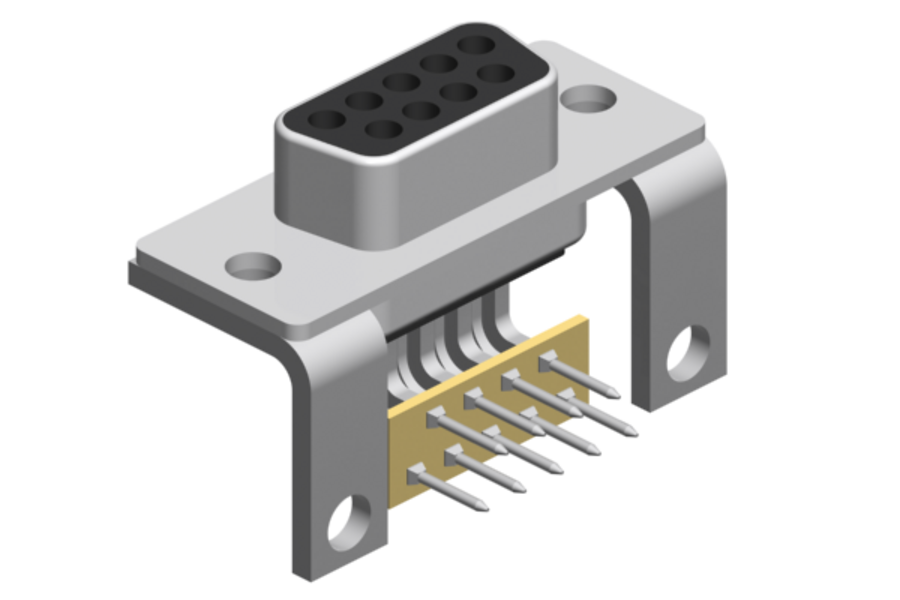

THT version -90°- open body with mounting brackets

Through-hole soldering in "female" and "male", horizontal as open body with mounting brackets 6.30mm & 7.30mm center type.

Available in 9-, 15-, 25- and 37-pin

THT version -90°- open body with mounting brackets
show details
Type Series Download Download Additional 3D / IGES / STEP
6.30mm center type (male) SDM-xxx-N900-xx/XxXX
6.30mm center type (female / precision contact) SDF-xxx-N901-xx/XxXX
6.30mm center type (male / precision contact) SDM-xxx-N901-xx/XxXX
7.30mm (female) SDF-xxx-T970-xx/XxXX
7.30mm (male) SDM-xxx-T970-xx/XxXX

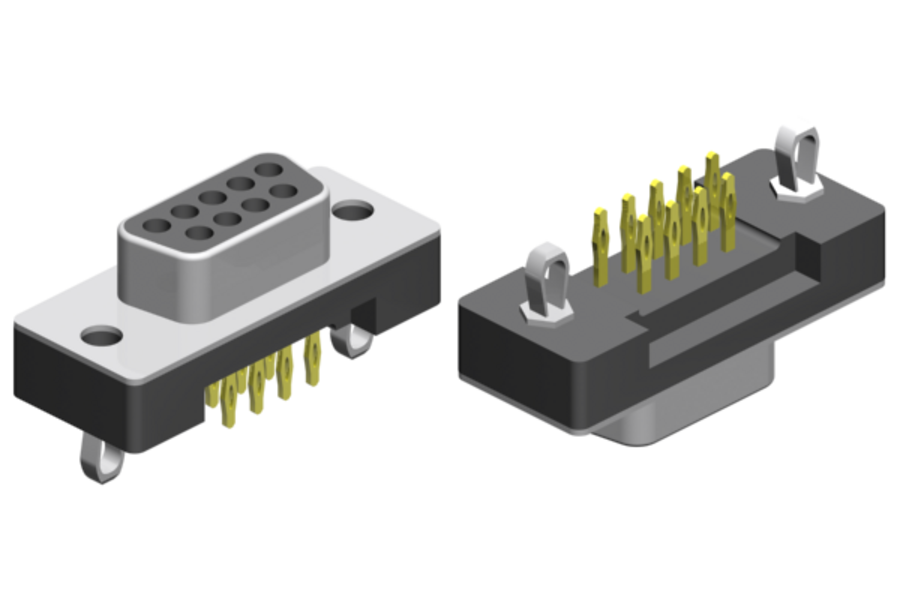

"press fit" versions

Series: SDX-xxx-P150-xx/XX

"press fit" version as "female" and "male". No soldering required - Secure contacting and holding in the PC board.

Version

9-pin
15-pin
25-pin
37-pin

Download

"press fit" versions

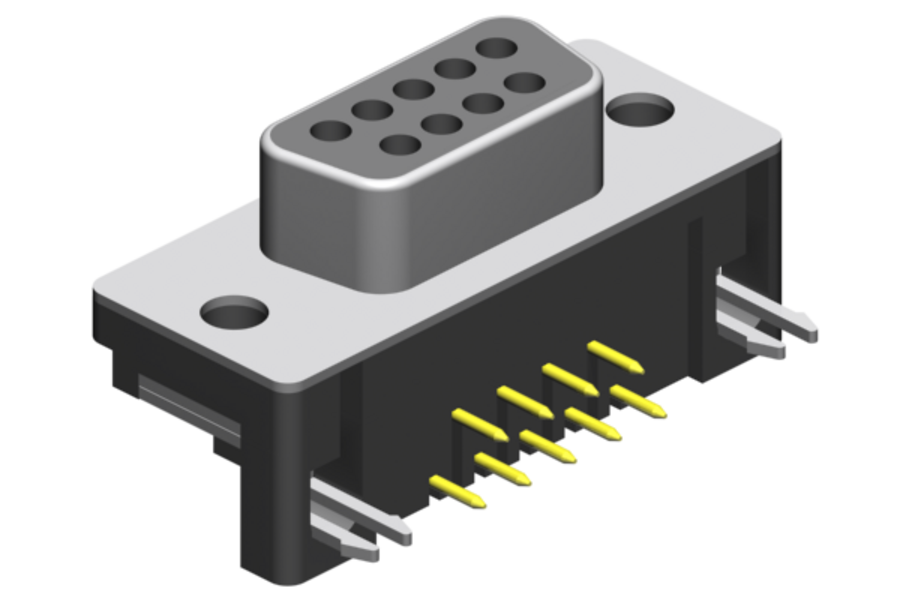

THT version -90°- closed body US-Style 8.08mm footprint type

Series: SDX-xxx-N900-xx/XX

Through-hole soldering in "female" and "male", horizontal for "Wave Solder" / "pin-in-paste" technology. US style with 8.08mm footprint type.

Also according to PC99 specification. Available with flat or round "grounding board lock clip", or "grounding strap" with mounting hole.

Version

9-pin
15-pin
25-pin
37-pin

Download

THT version -90°- closed body US-Style 8.08mm footprint type

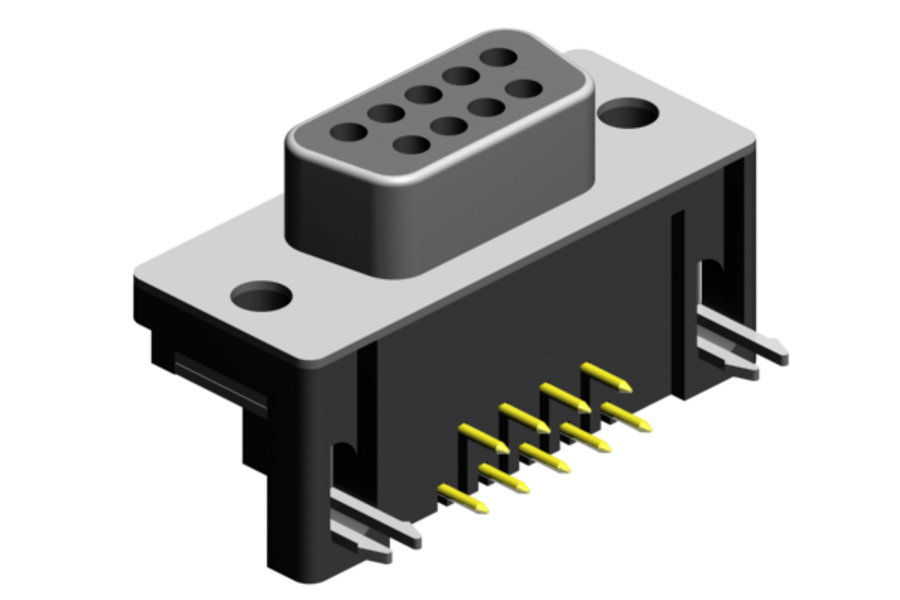

THT version -90°- closed body EURO-Style 9.40mm footprint type

Series: SDX-xxx-M900-xx/XX

Through-hole soldering type horizontal as "female" and "male". EURO-Style with 9.40mm footprint type.

Available with "grounding board lock clip" or "grounding strap" with mounting hole.

Version

9-pin
15-pin
25-pin
37-pin

Download

THT version -90°- closed body EURO-Style 9.40mm footprint type

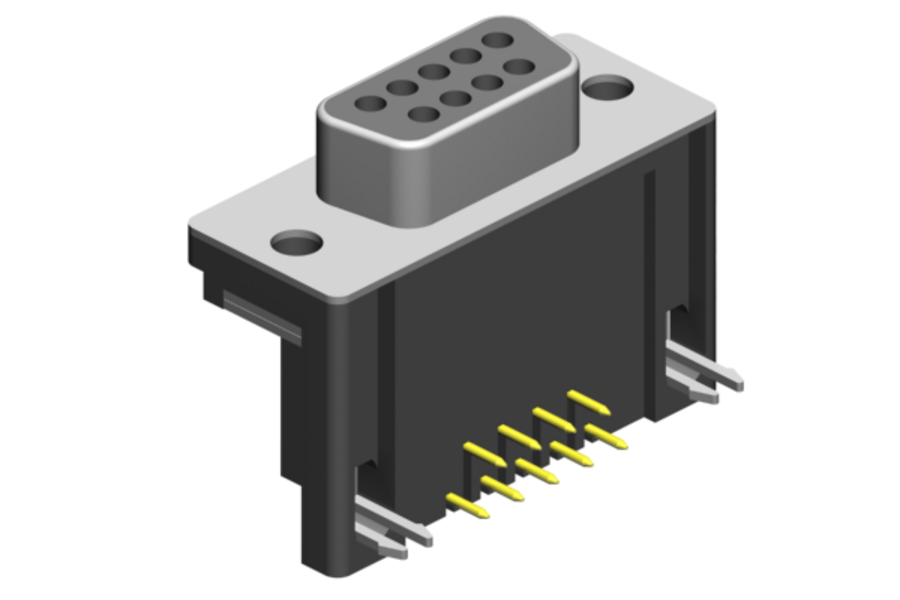

THT version -90°- closed body LONG-Style 15.00mm footprint type

Series: SDX-xxx-L900-xx/XX

Through-hole soldering type horizontal as "female" and "male". LONG style with 15.00mm footprint type.

Available with "grounding board lock clip" or "grounding strap" with mounting hole.

Version

9-pin
15-pin
25-pin
37-pin

Download

THT version -90°- closed body LONG-Style 15.00mm footprint type
