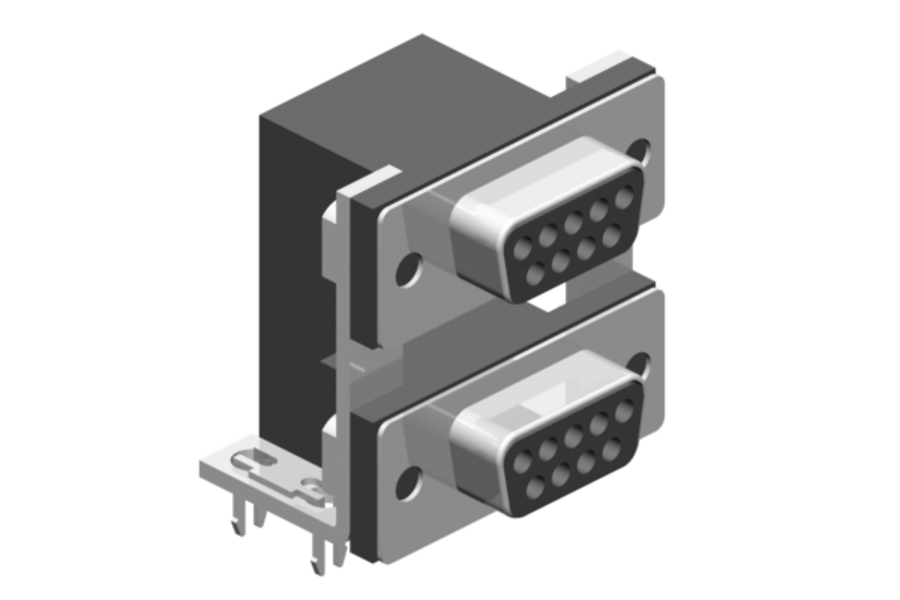

Standard version 9-/9-pin

D-Sub dual port in 9-/9-pin with distances of 15.87mm, 19.05mm and 22.86mm possible. Also with built-in ferrite filter.

Customized variants and dimensions possible.

Standard version 9-/9-pin
show details
Type Series Download Download Additional 3D / IGES / STEP
female/female SDD-0909-x-xx-FXXX
male/male SDD-0909-x-xx-MXXX
female/male SDD-0909-x-xx-FMXX
male/female SDD-0909-x-xx-MFXX

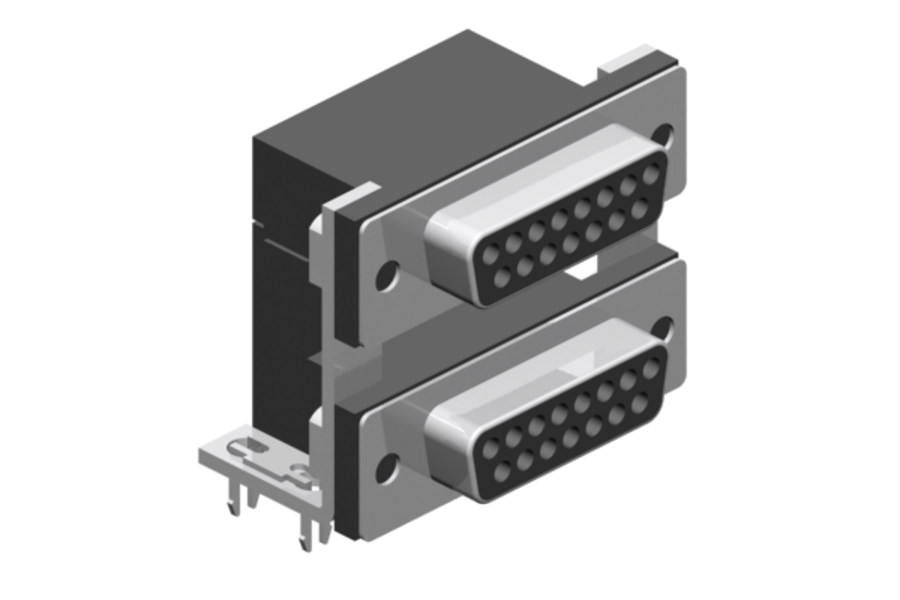

Standard version 15-/15-pin

D-Sub dual port in 15-/15-pin with distances of 15.87mm, 19.05mm and 22.86mm possible. Also with built-in ferrite filter.

Customized variants and dimensions possible.

Standard version 15-/15-pin
show details
Type Series Download Download Additional 3D / IGES / STEP
female/female SDD-1515-x-xx-FXXX
male/male SDD-1515-x-xx-MXXX
female/male SDD-1515-x-xx-FMXX
male/female SDD-1515-x-xx-MFXX

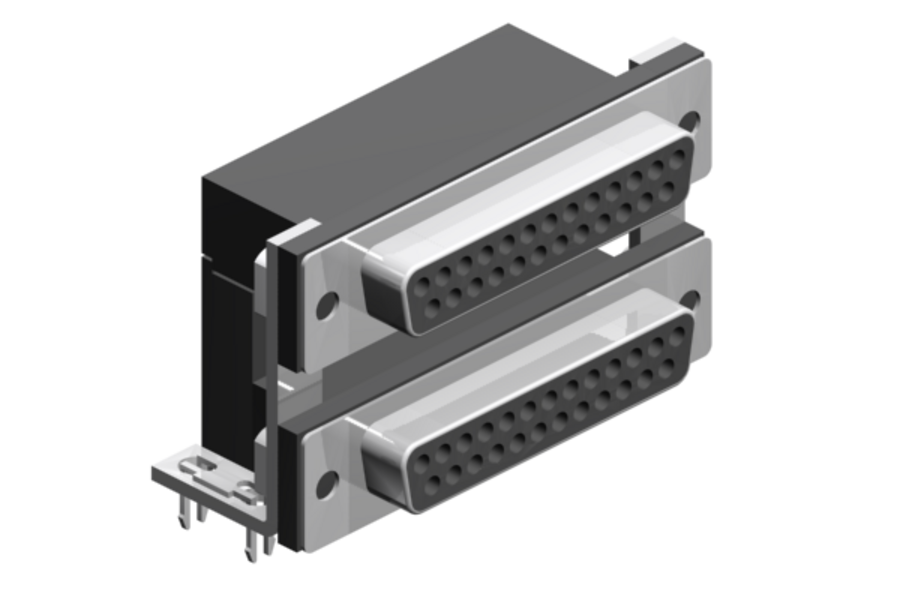

Standard version 25-/25-pin

D-Sub dual port in 25-/25-pin with distances of 15.87mm, 19.05mm and 22.86mm possible. Also with built-in ferrite filter.

Customized variants and dimensions possible.

Standard version 25-/25-pin
show details
Type Series Download Download Additional 3D / IGES / STEP
female/female SDD-2525-x-xx-FXXX
male/male SDD-2525-x-xx-MXXX
female/male SDD-2525-x-xx-FMXX
male/female SDD-2525-x-xx-MFXXX

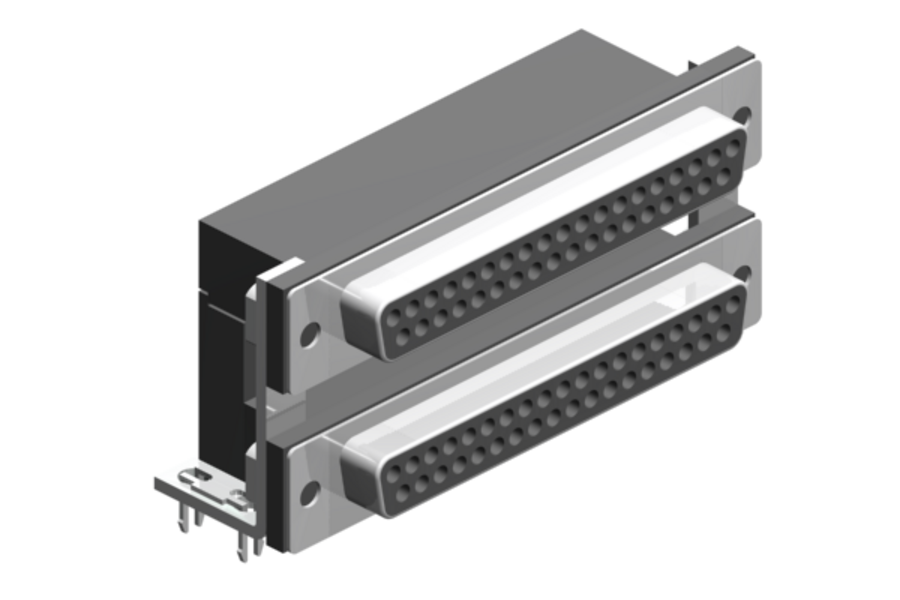

Standard version 37-/37-pin

D-Sub dual port in 37-/37-pin with distances of 15.87mm, 19.05mm and 22.86mm possible. Also with built-in ferrite filter.

Customized variants and dimensions possible.

Standard version 37-/37-pin
show details
Type Series Download Download Additional 3D / IGES / STEP
female/female SDD-3737-x-xx-FXXX
male/male SDD-3737-x-xx-MXXX
female/male SDD-3737-x-xx-FMXX
male/female SDD-3737-x-xx-MFXX

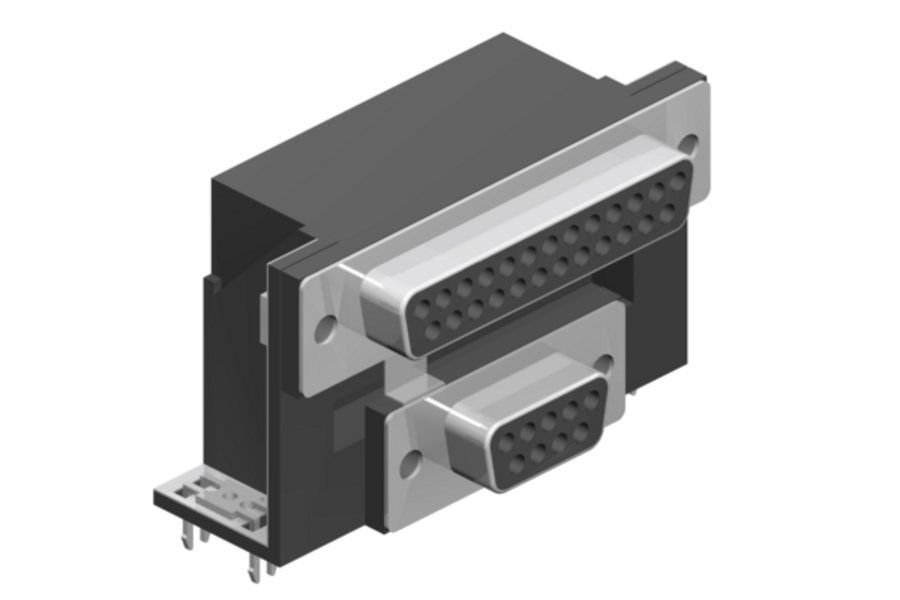

Standard version 25-/9-pin and 9-/25-pin

D-Sub dual port in 25-/9-pin only possible at a distance of 19.05mm. With 9-/25-pole distances of 15.87mm, 19.05mm and 22.86mm are possible.

9-/25-pin only available as female/female.

Customized variants and dimensions possible.

Standard version 25-/9-pin and 9-/25-pin
show details
Type Series Download Download Additional 3D / IGES / STEP
female 25-pin / female 9-pin SDD-2509-x-xx-FXX
male 25-pin / male 9-pin SDD-2509-x-xx-MXX
female 25-pin / male 9-pin SDD-2509-x-xx-FMXX
male 25-pin / female 9-pin SDD-2509-x-xx-MFXX
female 9-pin / female 25-pin SDD-0925-x-xx-FXX

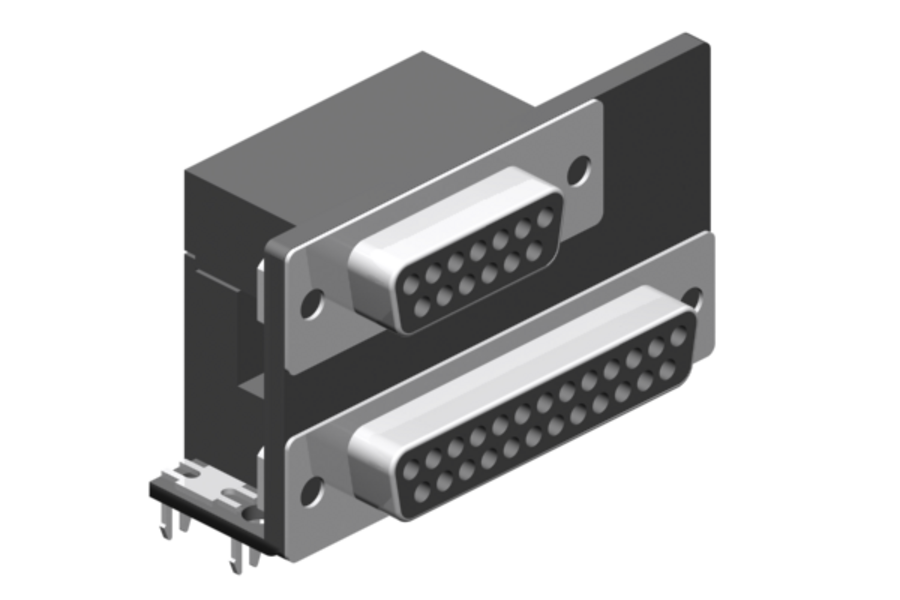

Standard version 15-/25-pin and 25-/15-pin

D-Sub dual port in 15-/25-pin and 25-/15-pin only as female/female and at a distance of 19.05mm possible. The 15-pin D-Sub is always left-justified.

Standard version 15-/25-pin and 25-/15-pin
show details
Type Series Download Download Additional 3D / IGES / STEP
female 15-pin / female 25-pin SDD-L1525-x-xx-FXX
female 25-pin / female 15-pin SDD-25L15-x-xx-FXX

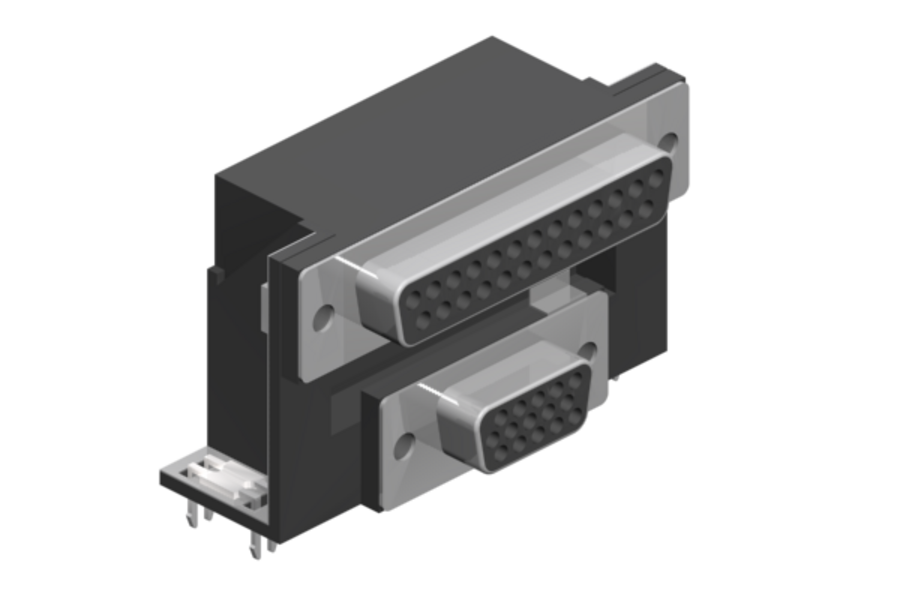

Standard & High Density Mix-version

D-Sub dual port in standard & High Density Mix-version.



  • 25-pin "female" / 15-pin HD "female" only in distance 19.05mm
  •

  • 9-pin "female" / 15-pin HD "male" only in distance 19.05mm
  •

  • 15-pin HD "female" / 9-pin "female" only in distance 19.05mm
  •

  • 15-pin HD "male" / 9-pin "female" only in distance 19.05mm
  •

  • 9-pin "female" / 15-pin HD "female" in distance 15.88mm and 19.05mm
  •

  • 9-pin "male" / 15-pin HD "female" in distance 15.88mm and 19.05mm
  •

  • 15-pin HD "female" / 15-pin HD "male" in distance 15.88mm and 19.05mm
  •

  • 15-pin HD "female" / 15-pin HD "female" only in distance 19.05mm
  •

  • 26-pin HD "female" / 26-pin HD "female" in distance 15.88mm and 19.05mm
  •

  • 26-pin HD "female" / 26-pin HD "male" in distance 15.88mm and 19.05mm
  •

  • 44-pin HD "female" / 44-pin HD "female" in distance 15.88mm and 19.05mm
  •

Customized variants and dimensions possible.

Standard & High Density Mix-version
show details
Type Series Download Download Additional 3D / IGES / STEP
female 25-pin / female 15-pin HD SDD-25H15-4-xx-FXX
female 9-pin / male 15-pin HD SDD-09H15-4-xx-FMXX
female 15-pin HD / female 9-pin SDD-H1509-6-xx-FXX
male 15-pin HD / female 9-pin SDD-H1509-7-xx-MFXX
female 9-pin / female 15-pin HD SDD-09H15-x-xx-FXX
male 9-pin / female 15-pin HD SDD-09H15-x-xx-MFXX
female 15-pin HD / male 15-pin HD SDD-H15H15-x-xx-FMXX
female 15-pin HD / female 15-pin HD SDD-H15H15-4-xx-FXX
female 26-pin HD / female 26-pin HD SDD-H26H26-x-xx-FXX
female 26-pin HD / male 26-pin HD SDD-H26H26-x-xx-FMXX
female 44-pin HD / female 44-pin HD SDD-H44H44-x-xx-FXX
