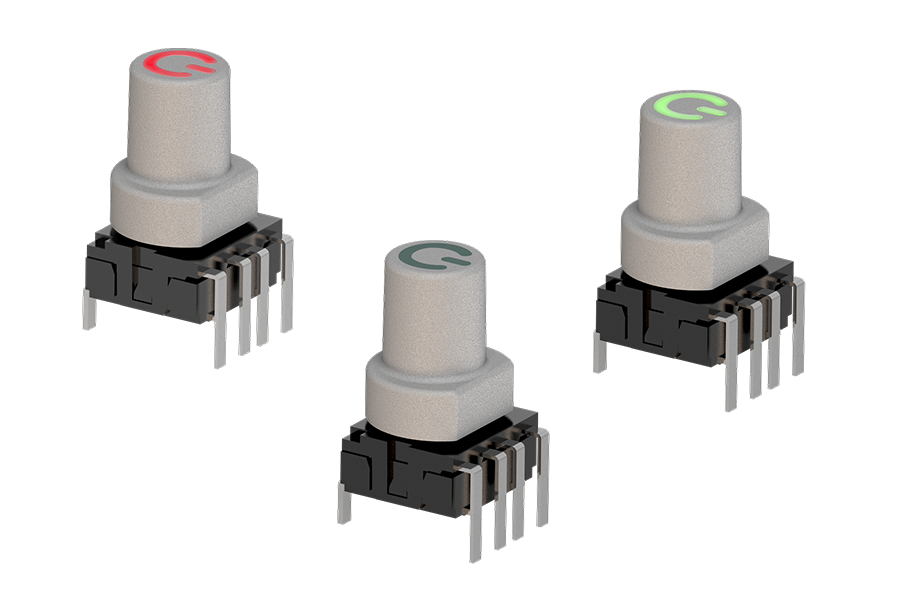

Tact Switch LED MultiColor(RGB) "THT" version
The LED MultiColor (RGB) illuminated Tact Switches can be operated from above and from the side. The RGB LEDs can be controlled at will and thus almost all colors are available. The caps are available in black, silver and transparent as well as with different standard markings. Custom markings can also be implemented.
The advantage of this LED MultiColor Tact Switches is that you only need one switch for different colored applications. Suitable for a variety of applications such as Consumer / Gaming / Medical / Network / Automotive and Audio/Video.
| Type | Series | Download | Download Additional | 3D / IGES / STEP |
|---|---|---|---|---|
| THT 90° with Cap | TLS-76-R/81Xxx/XXXSX/6SZ | |||
| THT 90° without Cap | TLS-76-R/W/XXXSX/6SZ | |||
| THT straight with Cap | TLS-76-S/81Xxx/XXXSX/6SZ | |||
| THT straight without Cap | TLS-76-S/W/XXXSX/6SZ | |||
| Cap | TCP-775-81Xxx |

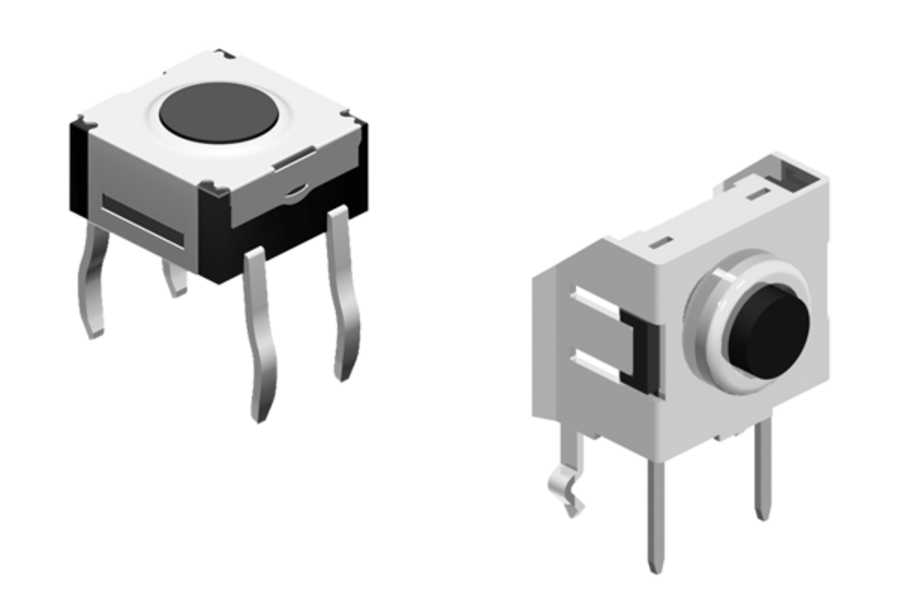

Tact Switch "THT" version
Tact Switch in "THT" version can be operated from top and from the side. Choose between long stroke or short stroke, long or short button, especially for your application. Because of the variety of possibilities, we can not show all Tact Switch types here, please contact our product specialists directly.
| Type | Series | Download | Download Additional | 3D / IGES / STEP |
|---|---|---|---|---|
| 6x6 vertical (1.6N) | TSS-602-6xNK/1SZ | |||
| 6x6 vertical (1.6N straight leg) | TSS-602-S6xNT/1SZ | |||
| 6x6 vertical (2.6N) | TSS_602-6xRK/1SZ | |||
| 6x6 vertical (2.6N straight leg) | TSS-602-xxRST/1SZ | |||
| 6x6 vertical (stem 9.5mm) | TSS-602-60NT/1SZ | |||
| 6x6 horizontal (1.6N) | TSS-602-R6xN/1SZ | |||
| 6x6 horizontal | TSS-602-R60NT/1SZ | |||
| 6x6 horizontal (stem 9.3mm) | TSS-602-R66NT/1SZ | |||
| 6x6 horizontal (2.5N stem 13.35mm) | TSS-602-R67RK/5SZ |

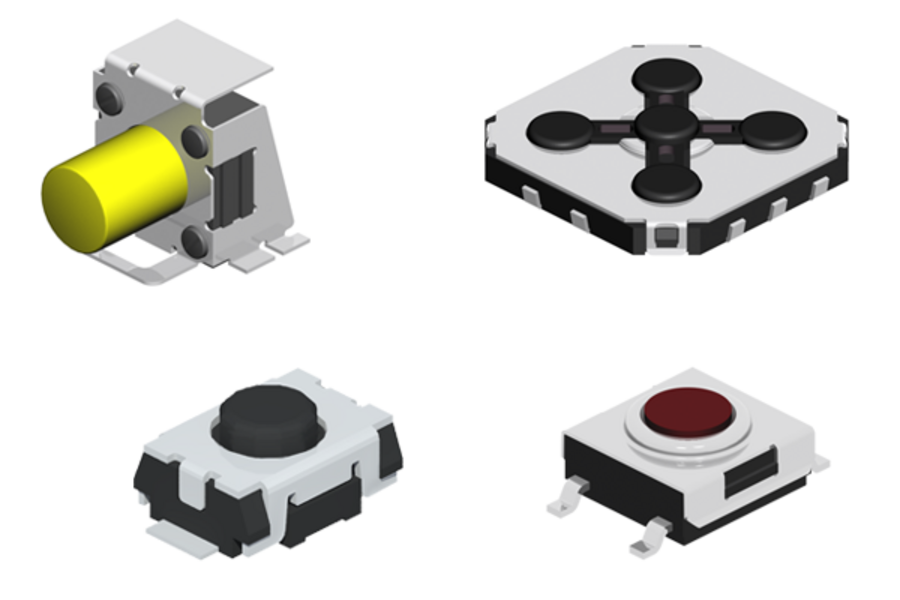

Tact Switch "SMT" version
Tact Switch in "SMT" version can be operated from top and from the side. Choose between long stroke or short stroke especially for your application. The multi-directional switch with 4 switching points is suitable for use in cameras, mobile telephones, radio controls or remote controls. Because of the variety of possibilities we can not show here all Tact Switch types, please contact our product specialists directly.
| Type | Series | Download | Download Additional | 3D / IGES / STEP |
|---|---|---|---|---|
| 4x3 (low Actuator) | TSM-102-L1C/1SZ | |||
| 4x3 (extended Actuator) | TSM-102-E2C/1SZ | |||
| 6x6 vertical | TSM-600-xxxXC/6SZ | |||
| 6x6 vertical (1.6N) | TSM-602-6xNC/1SZ | |||
| 6x6 vertical (2.6N) | TSM-602-6xXRC/1SZ | |||
| 6x6 vertical (stem 3.8mm) | TSM-602-48Nx/1SZ | |||
| 6x6 vertical (J-Leads) | TSJ-602-xxRC/1SZ | |||
| 6x3 vertical | TSM-126-60WC/5SZ | |||
| 6x4 horizontal | TSM-6/4-R620BLC/6SZ | |||
| 6x6 horizontal | TSM-602-RxxRC/1SZ | |||
| 7x7 vertical | TSM-702-12BLC/5SZ | |||
| 12x12 vertical | TSM-120-xxxXC/6SZ | |||
| Multi-Function | TNJ-TT05-L1C/1SZ |
