Slide Type DIP-Switch "THT"

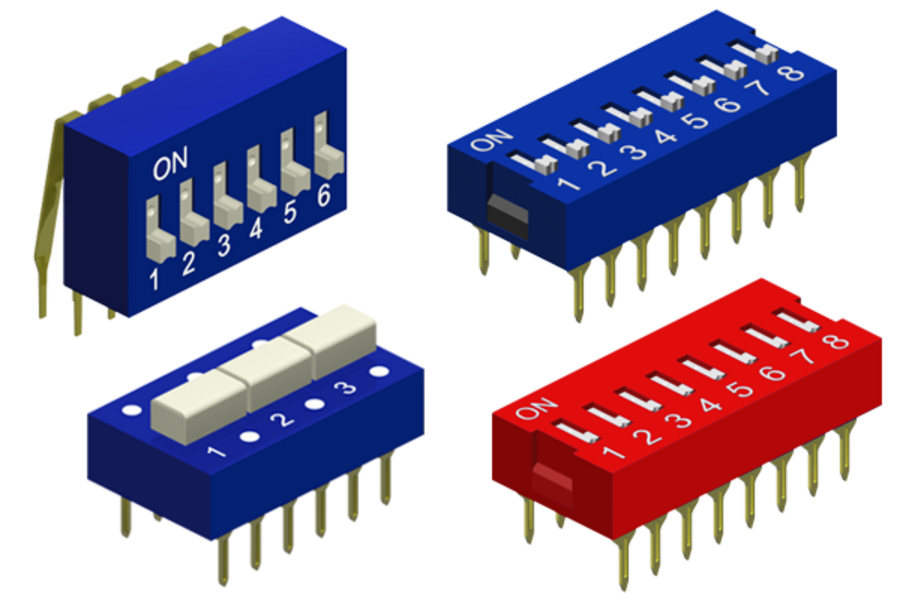

Slide Type Dip-Switch "Standard Profil"

In "standard profile", 7.70mm height, as a "single- and multiposition" switch in horizontal and vertical (right-angle) design. On request, the horizontal version is also "tape sealed", for protection during washing.

Available Pitch

2.54mm

Slide Type Dip-Switch "Auto Inserting"

"Auto Inserting" means that the switches have the same design and dimensions as an IC, and therefore have to be processed with every IC placement machine.

Available Pitch

2.54mm

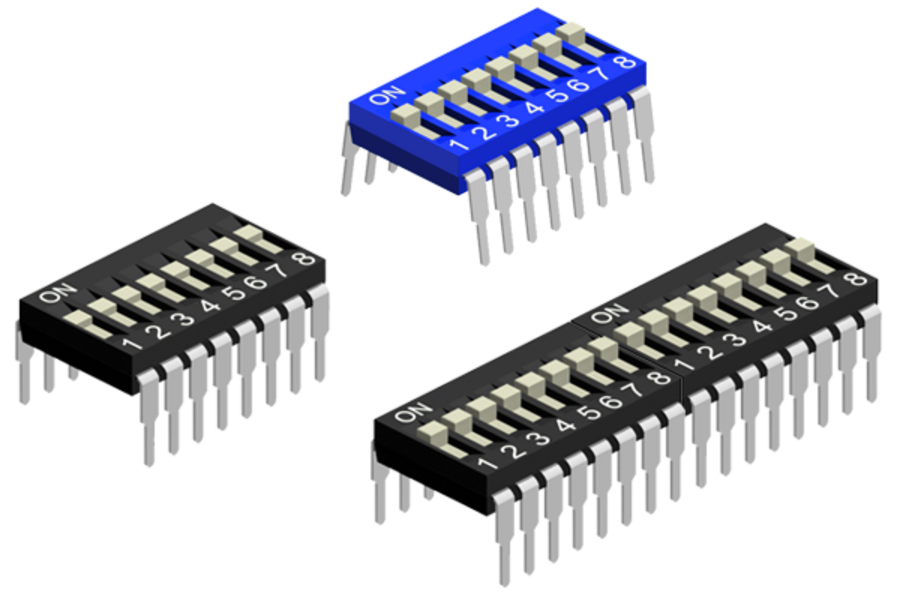

Slide Type Dip-Switch "End Stackable"

These switches, which can be stacked in the 2.54 mm grid, have the same design and dimensions as an IC, and are therefore to be processed with every IC mounting system.

Available Pitch

2.54mm

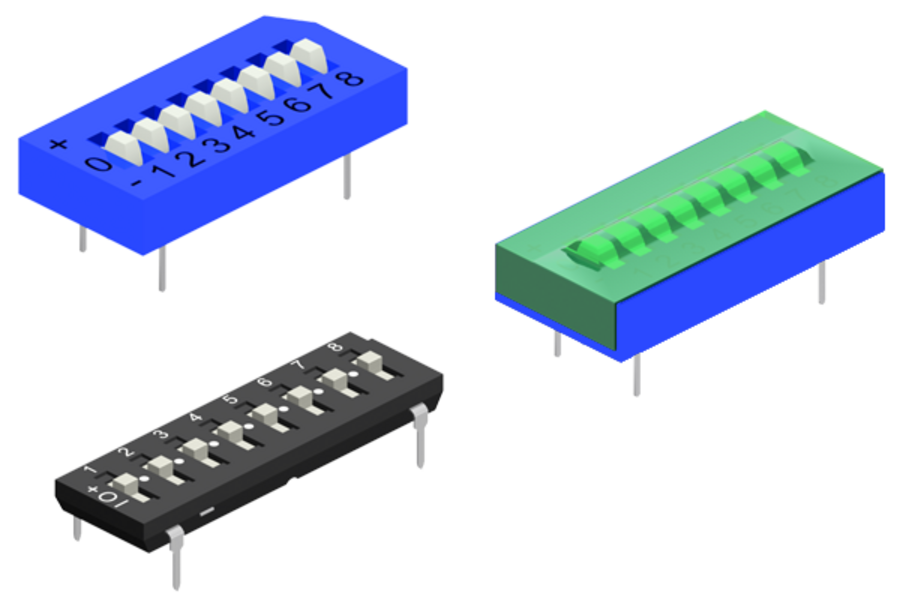

Slide Type Dip-Switch "Tri-State"

Switches with "tri-state" (1-open-0) switching functions produce 38 times more codes than "two-state". Example: 9 bits with "tri-state" yield 19,683 (39) codes versus 512 (29) at two-state. Working with suction equipment, we supply the switches with foil.

Available Pitch

2.54mm
