Slide Type DIP-Switch "SMT"

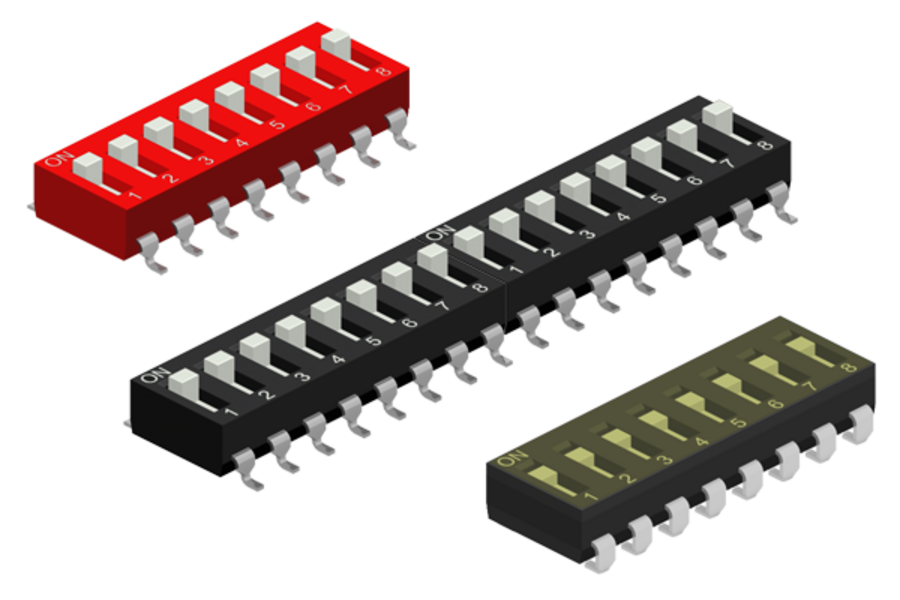

Slide Type Dip-Switch "End Stackable"

Series: DSX-1xx-XXZ

Can be stacked in a standard pitch of 2.54mm. In the version "Gull-Wing", the switches have an overall height of only 3.70mm, with "J-Leg" connections 4.00mm. Working with suction equipment, we supply the switches with foil.

Pitch

2.54mm

Download

Slide Type Dip-Switch "End Stackable"

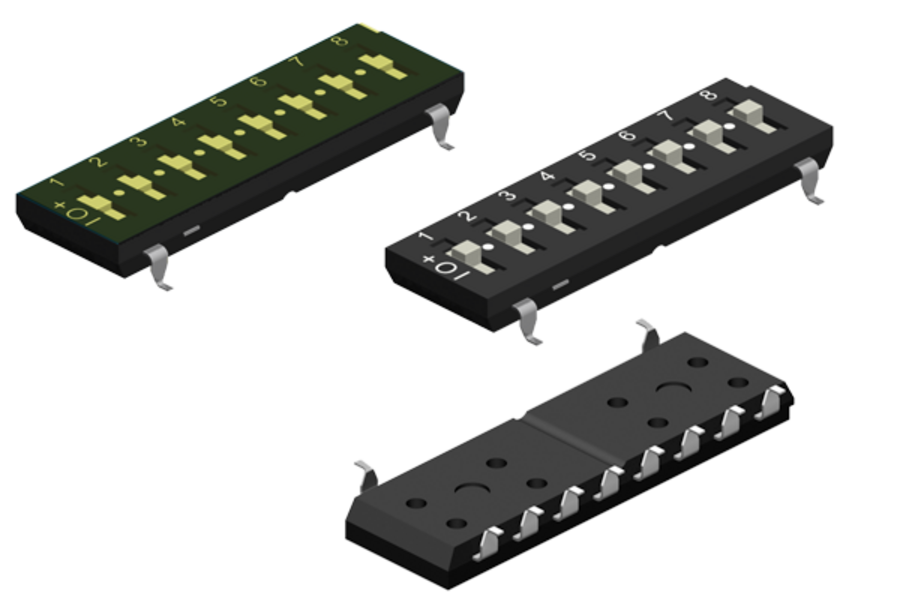

Slide Type Dip-Switch "Tri-State"

Series: DTX-1xx-XXZ

Switches with "tri-state" (1-open-0) switching functions provide 38 times more security codes than "two-state". Example: 9 bits with "tri-state" yield 19,683 (39) codes versus 512 (29) at two-state. Working with suction equipment, we supply the switches with foil.

Pitch

2.54mm

Download

Slide Type Dip-Switch "Tri-State"

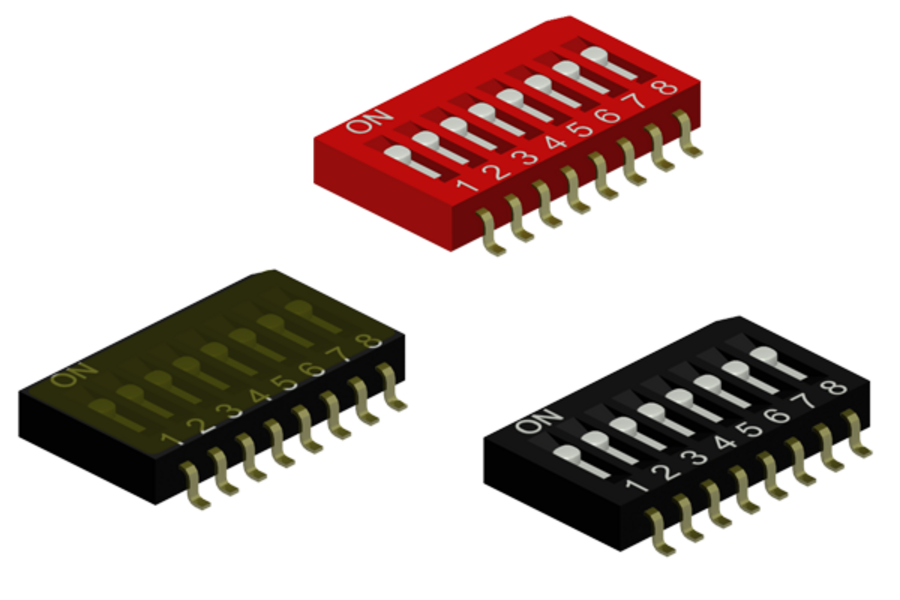

Slide Type Dip-Switch "Half Pitch"

Series: DHS-1xx-XXZ

Also this "half pitch" version, 1.27mm pitch, can be arranged. Super flat, only 1.80mm building on the PCB. Working with suction equipment, we supply the switches with foil.

Pitch

1.27mm

Download

Slide Type Dip-Switch "Half Pitch"

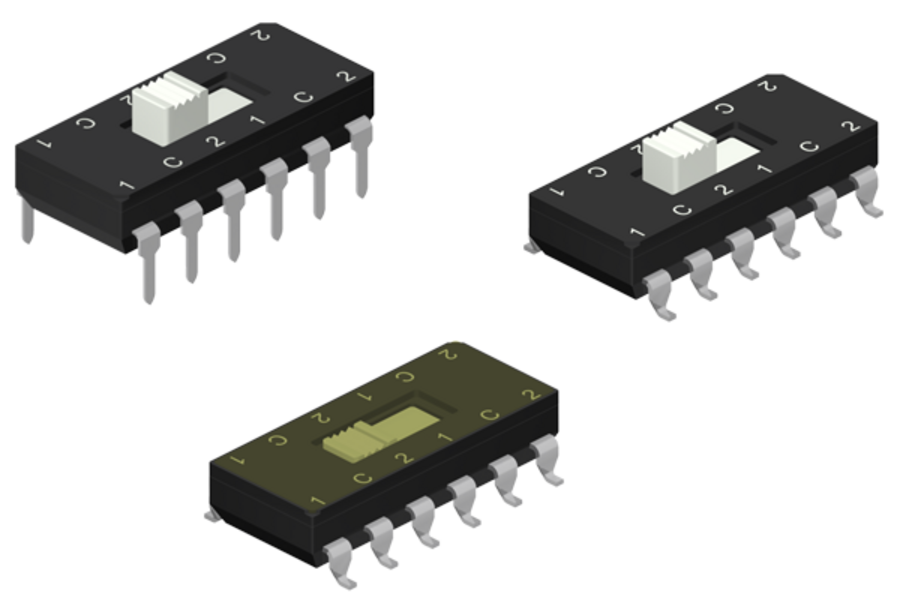

Selector Slide Switch

Series: DSP-42-XXxxZ

The "THT" version with 3.50mm height, and the "SMT" version with 3.75mm are available with long or short sliding lever. Can be stacked at a pin spacing of 2.54mm and can be processed with all assembly systems. The SMT version can be ordered with "top-tape-sealed", but only with a short sliding lever.

Pitch

2.54mm

Download

Selector Slide Switch
