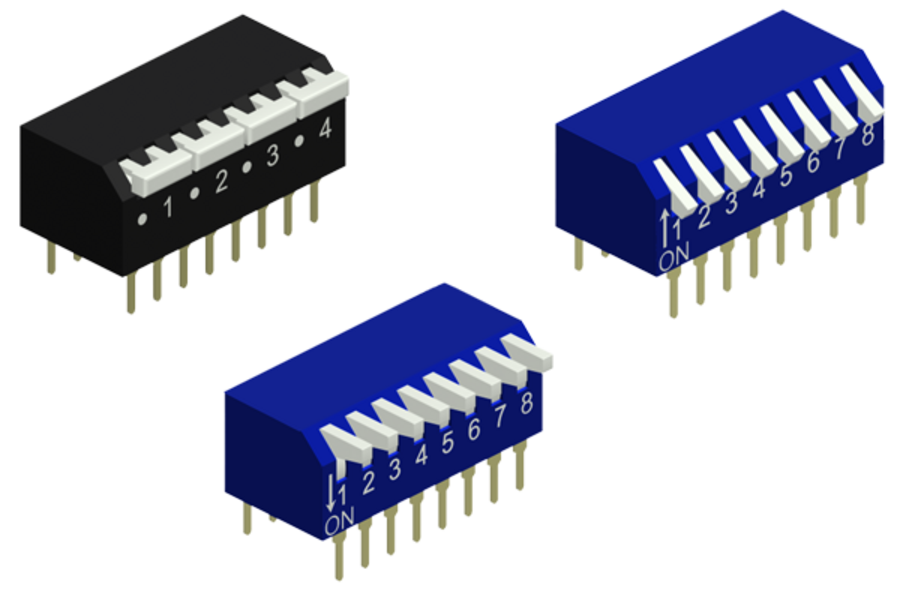

Standard profile "THT" version

Series: DPx-xxx-XXZ

As a "single- and multiposition" switch. The standard profile has a height of 9.70mm, otherwise DIP IC dimensions with a pitch of 7.62mm and a pitch of 2.54mm. Also possible with "multiposition" circuit. On request, we also supply "tape sealed" for protection during washing.

Pitch

2.54mm

Download

Standard profile "THT" version

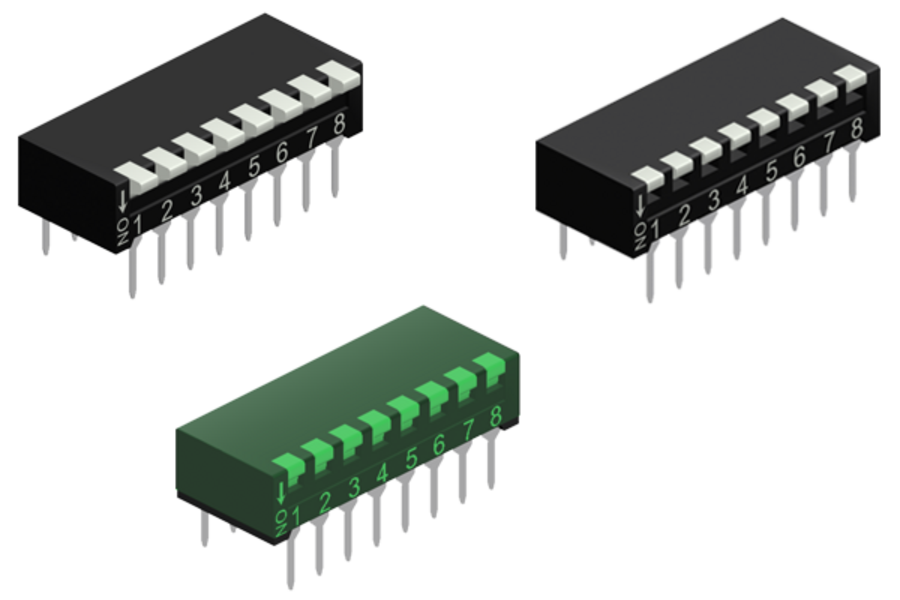

Low Profile "THT" version - NOT stackable

Series: DPH-1xx-xxZ

This version has a height of 5.65mm and DIP IC dimensions, with a pitch of 7.62mm and a spacing of 2.54mm. Selectable between short and long shift levers. On request, we also supply "tape sealed" for protection during washing.

Pitch

2.54mm

Download

Low Profile "THT" version - NOT stackable

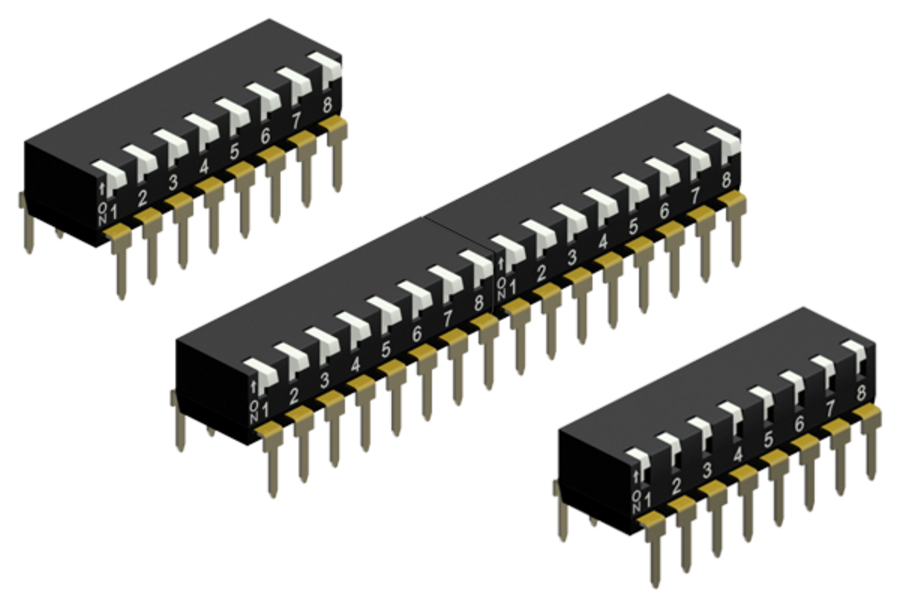

Low Profile "THT" version - stackable

Series: DPI-1xx-XX10Z

This version, NOT washable, can be stacked in a 2.54mm pin spacing. The height is only 5.00mm and DIP IC dimensions with spacing 7.62mm. Selectable between short and long shift levers.

Pitch

2.54mm

Download

Low Profile "THT" version - stackable

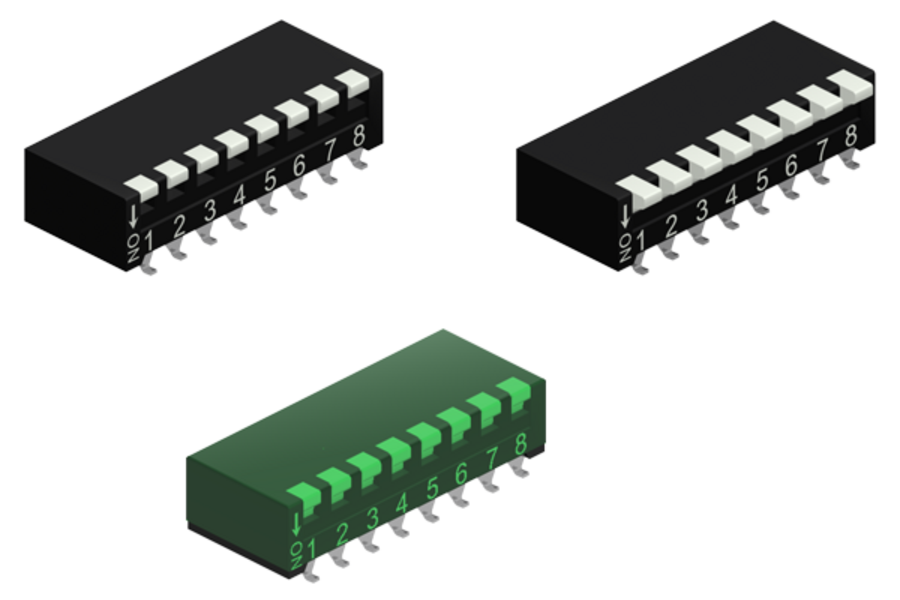

Low Profile "SMT" version - NOT stackable

Series: DPA-1xx-XXXxZ

This version has a height of 5.70mm. Easy to process with suction pick-and-place machines, whether from the tube or from the reel. Selectable between short and long shift levers. On request, we also supply "tape sealed" for protection during washing.

Pitch

2.54mm

Download

Low Profile "SMT" version - NOT stackable

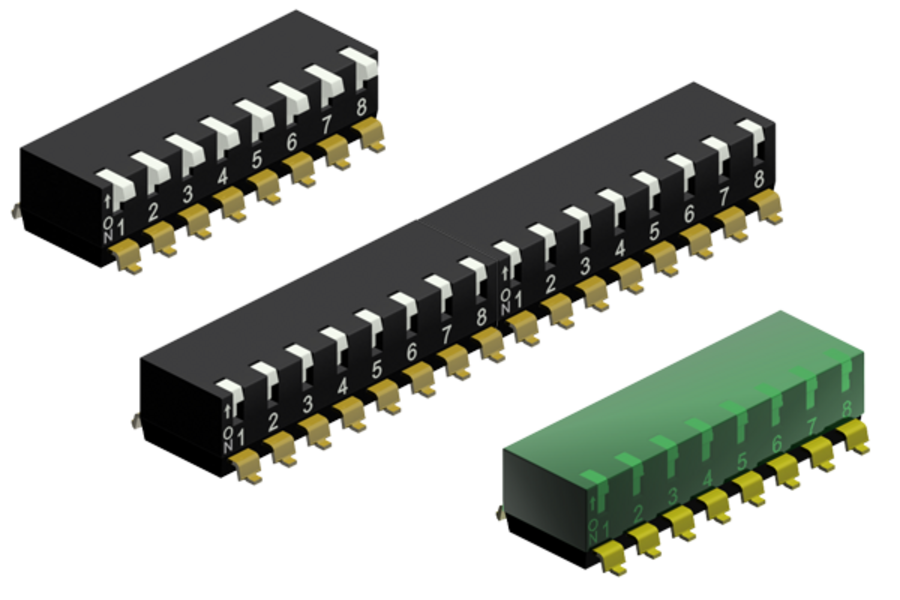

Low Profile "SMT" version - stackable

Series: DPM-1xx-XX1xxZ

These versions can be stacked in a 2.54mm pin spacing. The height is only 5.00mm. Easy to process with automatic pick-and-place machines. Selectable between short and long shift levers. NOT washable.

Pitch

2.54mm

Download

Low Profile "SMT" version - stackable
