MBC-xxx-BFV62-xx/11E - Type-"B"

Series: MBC-xxx-BFV62-xx/11E

Female header SMT vertical 1.27mm pitch  height (unplugged) - 6.20mm
12, 16, 20, 26, 30, 32, 40, 50, 68 and 80 poles

More designs and heights on request

Pitch

1.27mm

Download

MBC-xxx-BFV62-xx/11E - Type-"B"

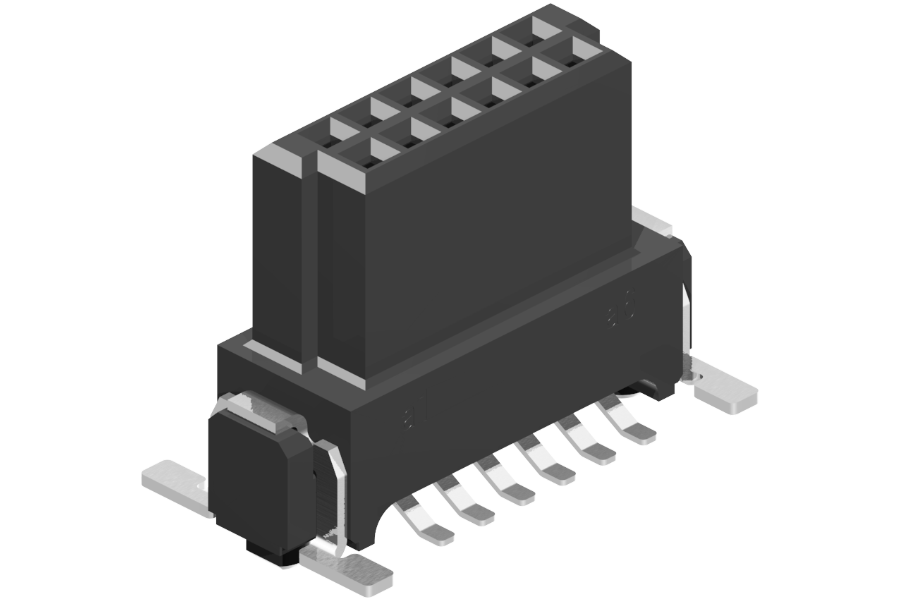

MBC-xxx-BFV90-xx/11E - Type-"B"

Series: MBC-xxx-BFV90-xx/11E

Female header SMT vertical 1.27mm pitch  height (unplugged) - 9.00mm
12, 16, 20, 26, 32, 40, 50, 68 and 80 poles.

More designs and heights on request



Pitch

1.27mm

Download

MBC-xxx-BFV90-xx/11E - Type-"B"

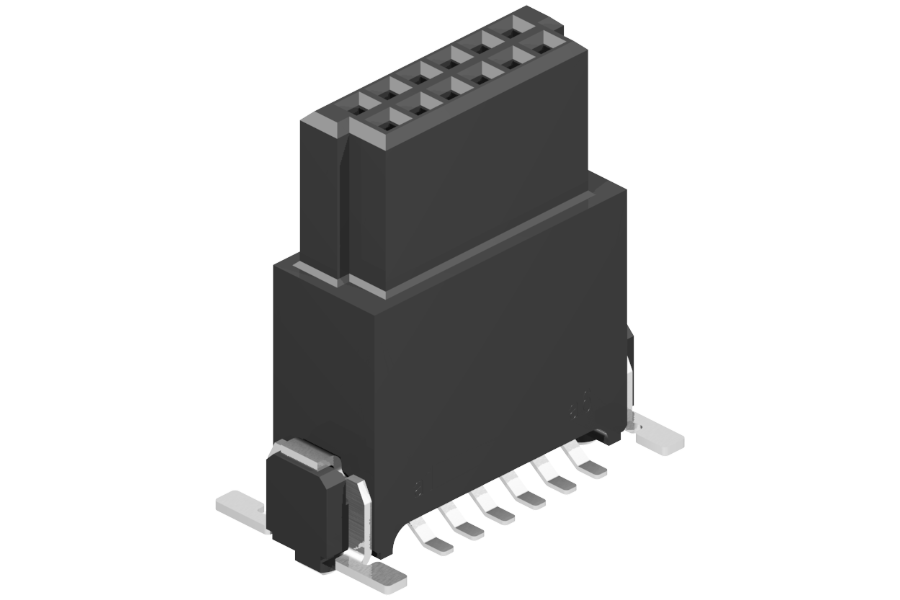

MBC-xxx-BFV136-xx/11E - Type-"B"

Series: MBC-xxx-BFV136-xx/11E

Female header SMT vertical 1.27mm pitch  height (unplugged) - 13.65mm
12, 16, 26, 32, 40 and 50 poles.

More designs and heights on request

MBC-xxx-BFV136-xx/11E - Type-"B"

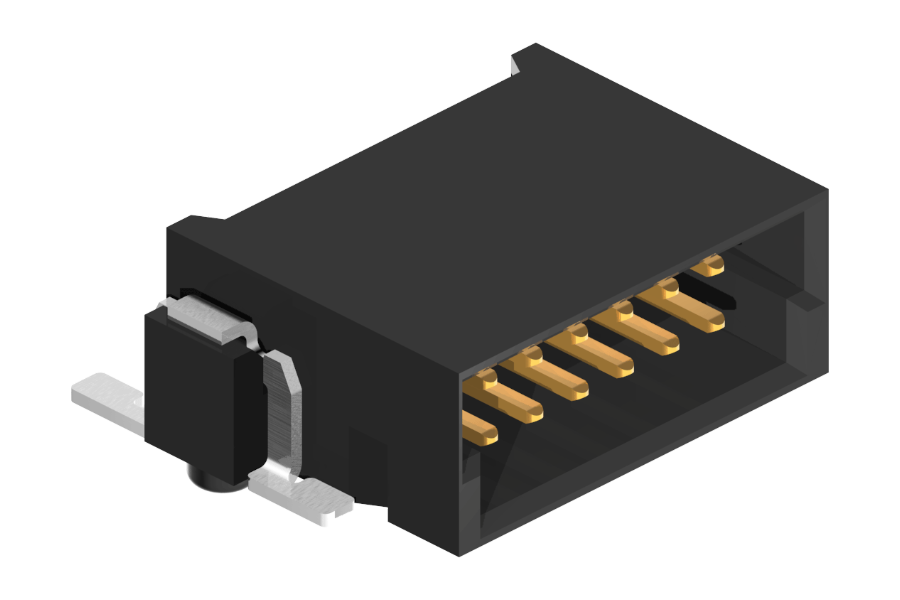

MBC-xxx-BMH42-xx/11G - Type-"B"

Series: MBC-xxx-BMH42-xx/11G

Pin header SMT horizontal 1.27mm pitch  height (unplugged) - 4.20mm
10, 12, 16, 20, 26, 30, 32, 40, 50, 60, 68 and 80 poles.

More designs and heights on request

Pitch

1.27mm

Download

MBC-xxx-BMH42-xx/11G - Type-"B"

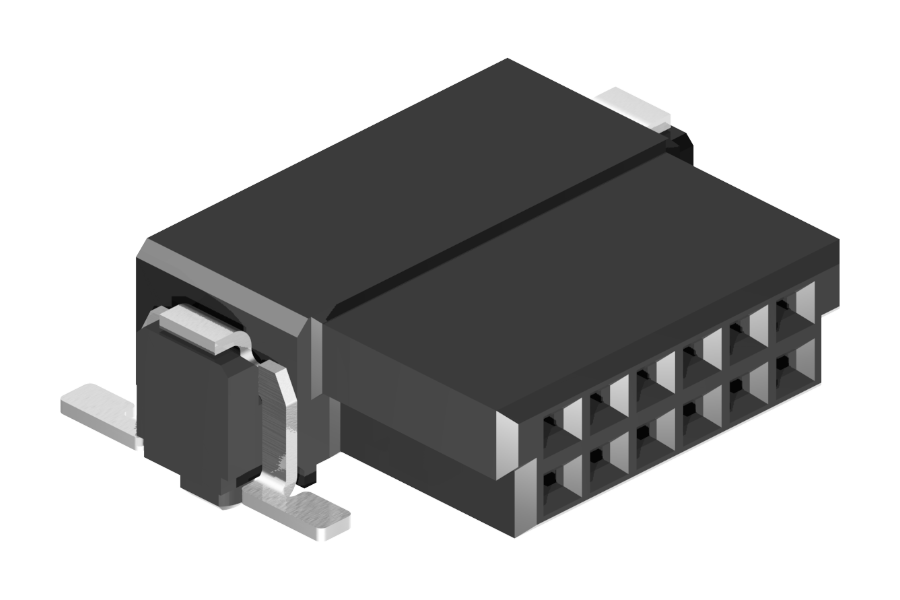

MBC-xxx-QFH38-xx/11G - Type-"Q"

Series: MBC-xxx-QFH38-xx/11G

Female header SMT horizontal 1.27mm pitch  height (unplugged) - 3.85mm
12, 20, 26, 32, 40, 50, 68, 80 and 100 poles.

More designs and heights on request



Pitch

1.27mm

Download

MBC-xxx-QFH38-xx/11G - Type-"Q"

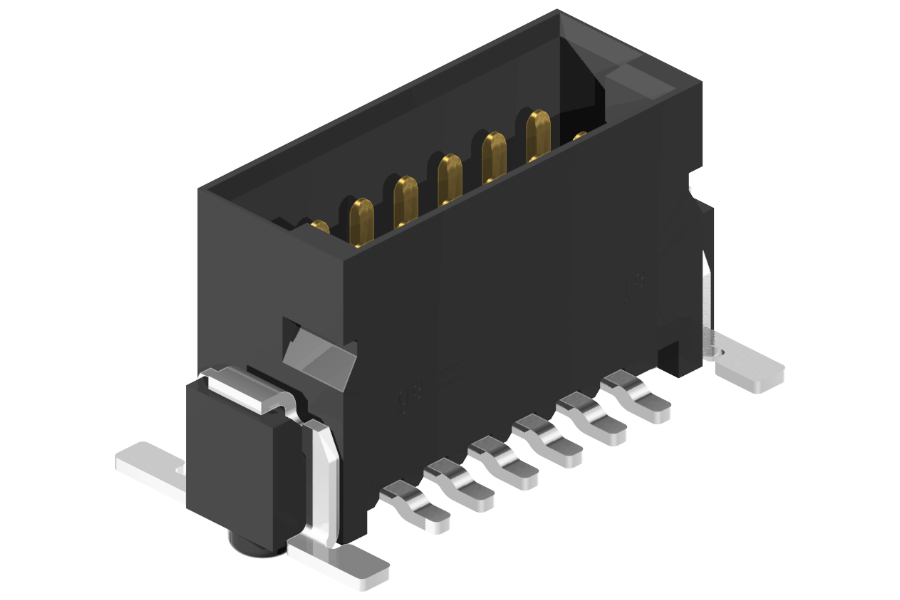

MBC-xxx-QMV67-xx/11E - Type-"Q"

Series: MBC-xxx-QMV67-xx/11E

Pin header SMT vertical 1.27mm pitch  height (unplugged) - 6.70mm
10, 12, 16, 20, 26, 30, 32, 40, 50, 68 and 80 poles.

More designs and heights on request

Pitch

1.27mm

Download

MBC-xxx-QMV67-xx/11E - Type-"Q"

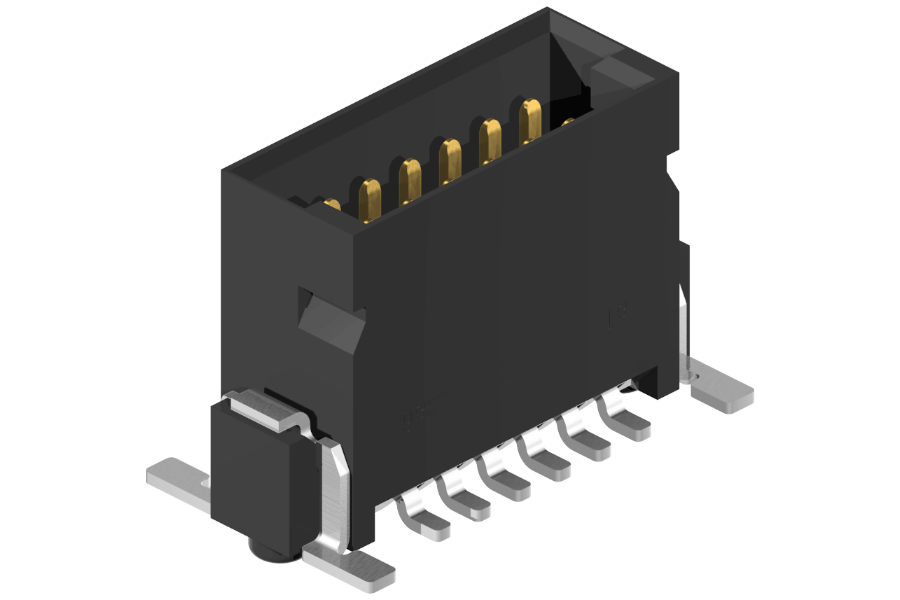

MBC-xxx-QMV82-xx/11E - Type-"Q"

Series: MBC-xxx-QMV82-xx/11E

Pin header SMT vertical 1.27mm pitch  height (unplugged) - 8.20mm
12, 16, 20, 26, 30, 32, 40, 50, 68, 80 and 100 poles.

More designs and heights on request



Pitch

1.27mm

Download

MBC-xxx-QMV82-xx/11E - Type-"Q"

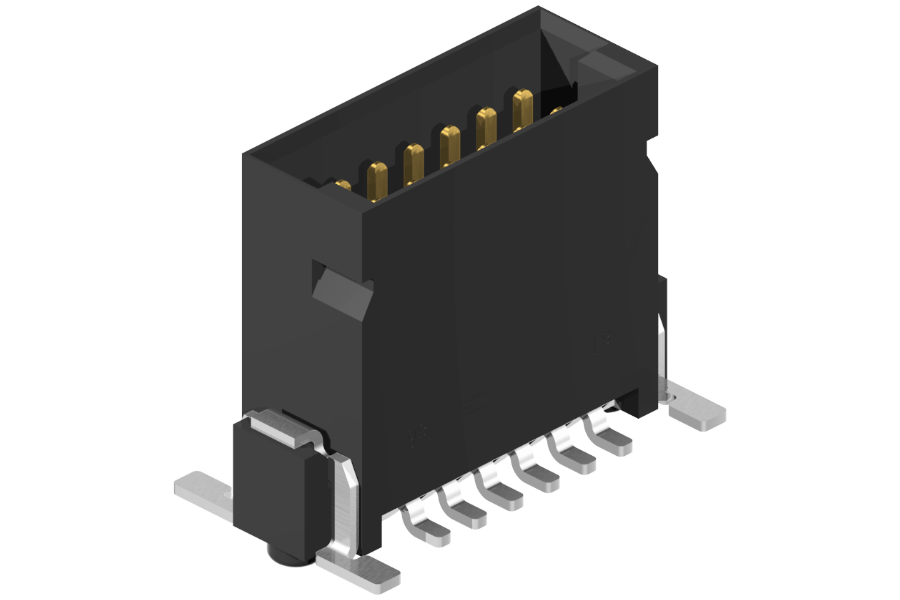

MBC-xxx-QMV99-xx/11E - Type-"Q"

Series: MBC-xxx-QMV99-xx/11E

Pin header SMT vertical 1.27mm pitch  height (unplugged) - 9.90mm
40 poles.

More designs and heights on request

Pitch

1.27mm

Download

MBC-xxx-QMV99-xx/11E - Type-"Q"

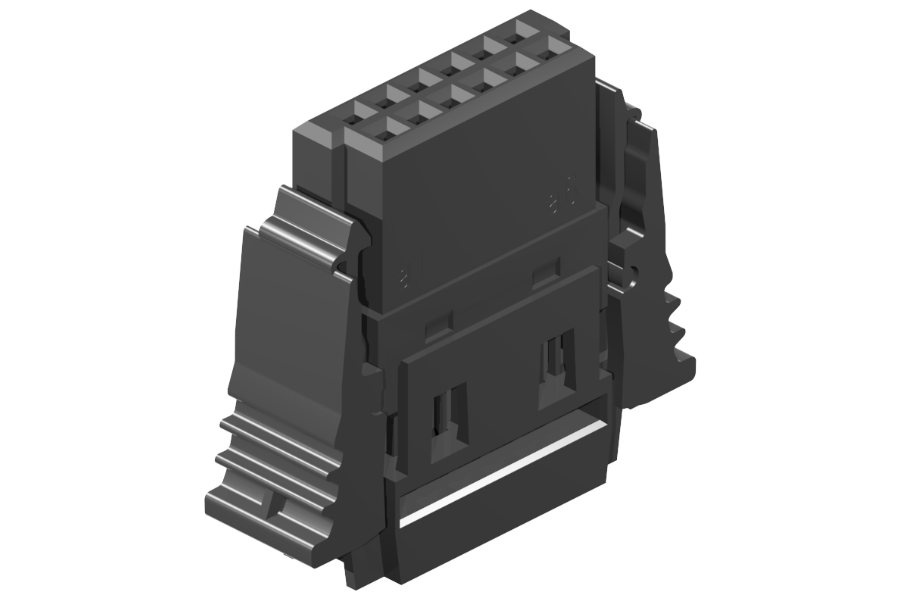

MBC-xxx-BIC52-xx/11L

Series: MBC-xxx-BIC52-xx/11L

Female header to IDC. 1.27mm pitch  height (overall) - 13.70mm
10, 12, 16, 20, 26, 30, 32, 40, 50, 68 and 80 poles.

More designs and heights on request

Pitch

1.27mm

Download

MBC-xxx-BIC52-xx/11L
