3.00mm versions

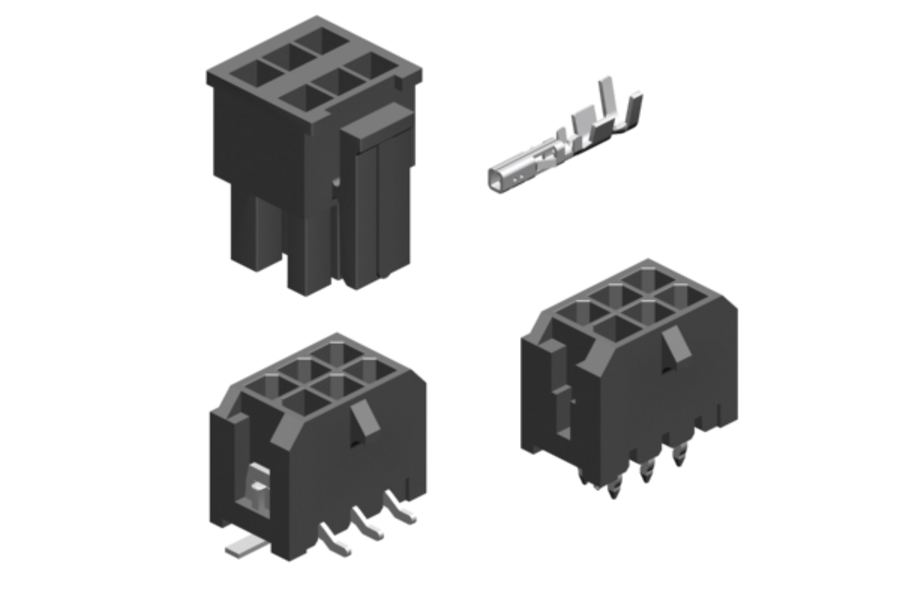

Compatible with the Molex series Micro Fit 3.0™, E-tec offers the W-type in THT (soldering technique), vertical and horizontal. SMT (surface mount technology) has the vertical SC-type with solder clips and the SW-type with solder tabs. For this purpose the matching plug with crimp contacts for AWG20 to AWG24.For 1-row versions, couplings, PCB clip lock etc. please contact us.

3.00mm versions
show details
Pitch Series Download Download Additional 3D / IGES / STEP
3.00mm (W-/WC-/SW-/SC-Type) PCX-xxx-X300-xx/X
3.00mm (W-/WC-/WN-/SC-/SW-Type) PCX-xxx-X300-xx/X
3.00mm (W-/SW-/SC-Type) PCX-xxx-X300-xx/X
3.00mm (W-/WN-/SC-/SW-Type) PCX-xxx-X300-xx/X
3.00mm PCX-2xx-BX300-xx/X

3.96mm versions

Series: PCx-xxx-X396-xx

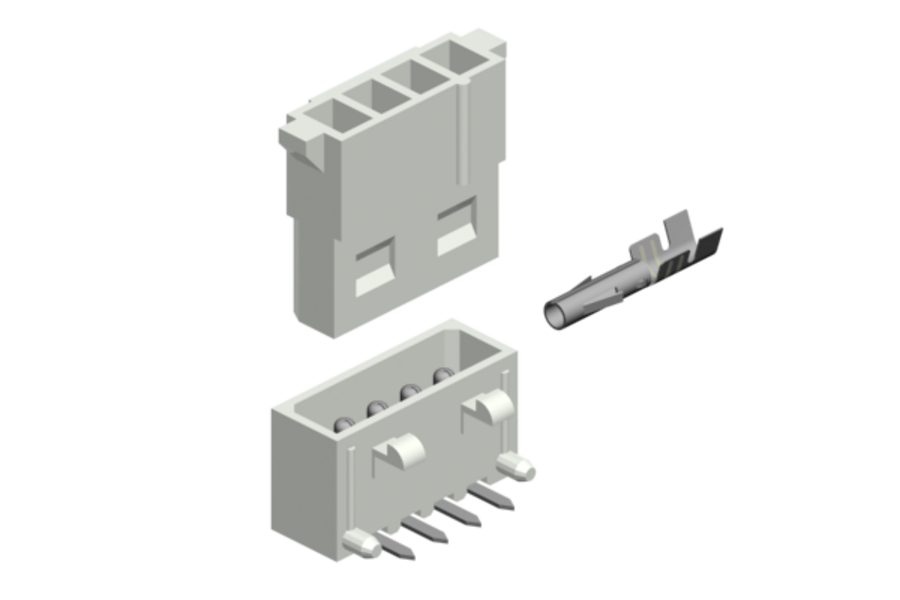

Compatible with other competitors are the



  • "Friction Lock", F-type in THT (single-soldering), vertical and horizontal 1-row, and the matching plug with crimp contacts for AWG18 to AWG24 cable.
  •

  • "Latch Lock", L-type in THT (single soldering), vertical 1-row, and the matching plug
  •

with crimp contacts for AWG18 to AWG24 cables.



  • "Quick Lock", Q-type in THT (single-soldering), vertical and horizontal 1-row, and the matching plug with crimp contacts for AWG18 to AWG22 cable.
  •

More 3.96mm versions on request.

Pitch

3.96mm

Download

3.96mm versions

4.20mm versions

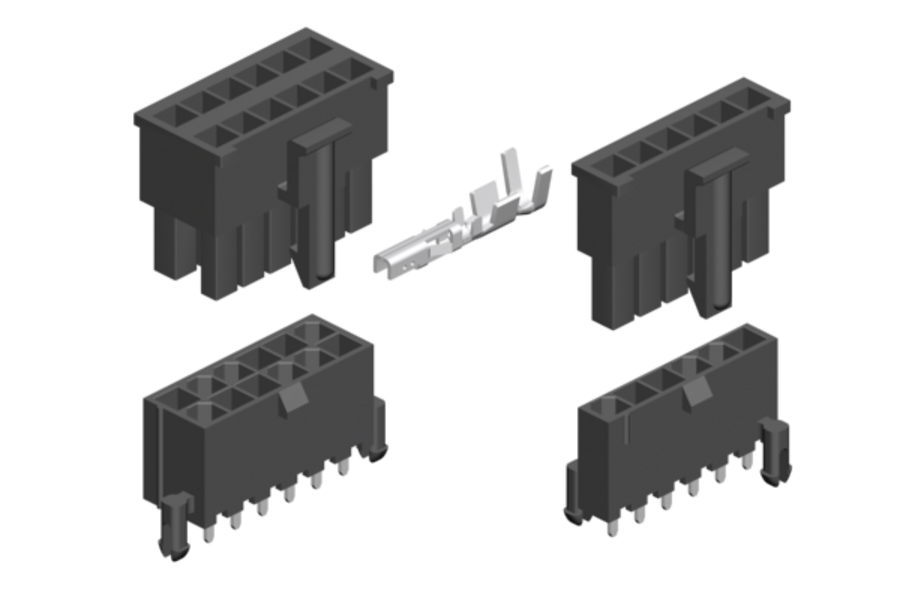

Whether A-type, P-type or W-type, 1-row, 2-row in THT (soldering technique) and the matching plugs with crimp contacts for AWG16 to AWG24 are 100% compatible with the Molex Series Mini-Fit RTC™.

For more designs such as couplings, PCB clip lock etc. please contact us.

4.20mm versions
show details
Pitch Series Download Download Additional 3D / IGES / STEP
4.20mm (P-/A-/W-Type) PCX-xxx-X420-xx
4.20mm (P-/W-Type) PCX-xxx-X420-xx
4.20mm (P-/PN-Type) PCX-xxx-X420-xx
4.20mm (BC-/BF-/BM-/P-Type) PCX-xxx-X420-xx

5.08mm versions

Series: PCX-xxx-X508-xx

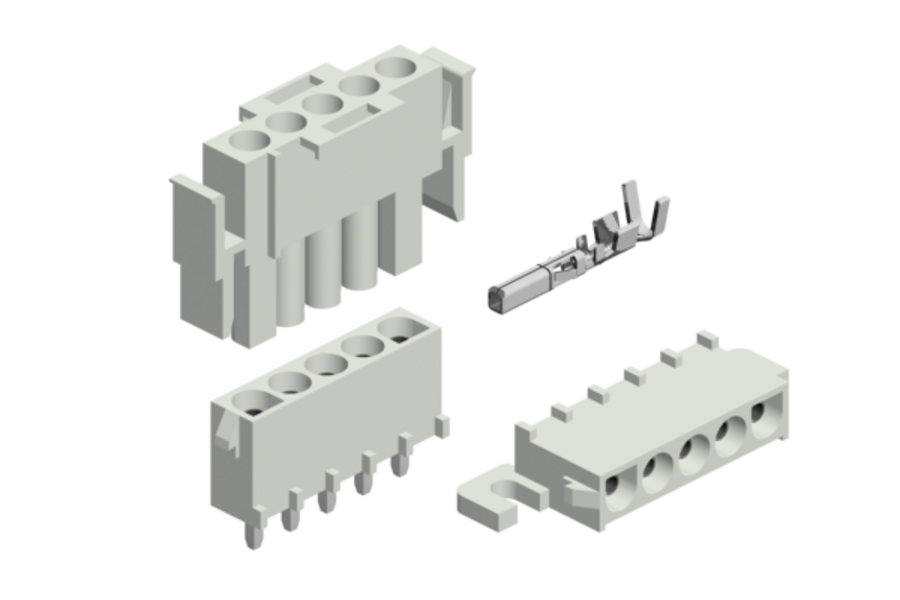

These classic disc drive power connectors are available as



  • "Friction Lock", F-type in THT (single-soldering), vertical and horizontal 1-row, and the matching plug with crimp contacts for AWG18 to AWG24 cable.
  •

  • "Box", T-type in THT (soldering technique), vertical 1-row, and the matching plug P-type
  •

with crimp contacts for AWG18 to AWG20 cables.



  • "Wire to wire", P-type / C-type with crimp contacts for AWG18 to AWG22 cables, and as IDC I-type, for AWG18 to AWG20 cables.
  •

More 5.08mm versions on request.

Pitch

5.08mm

Download

5.08mm versions

6.35mm versions

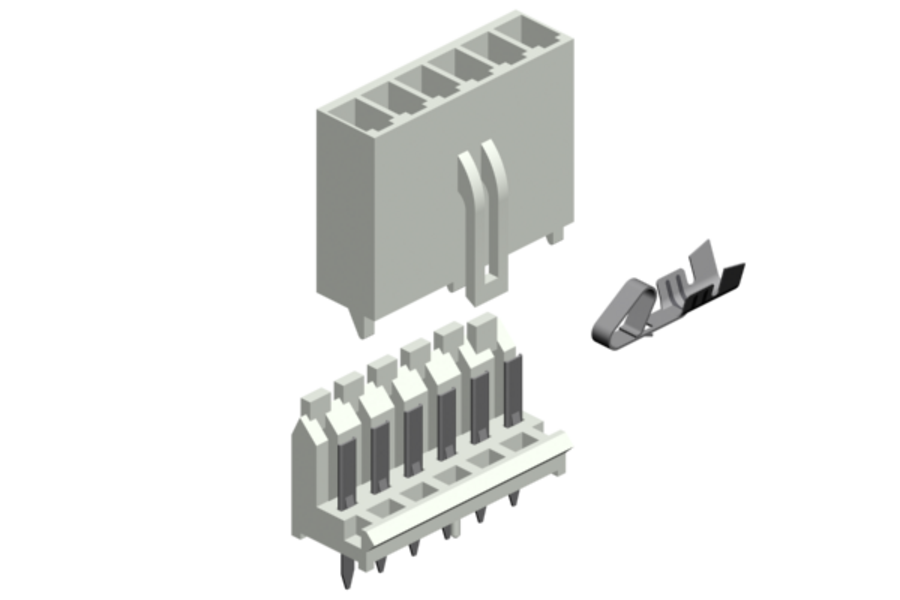

The E-tec P-type is compatible with the Molex series MLX™. The male or female header, THT (soldering technique), vertical and horizontal, to match the plugs, optionally available with male or female crimp contacts for AWG16 to AWG20 cables. Also available is a wire to wire connector with crimp contacts for AWG16 to AWG20 cables. More 6.35mm versions on request.

6.35mm versions
show details
Pitch Series Download Download Additional 3D / IGES / STEP
6.35mm (P-/PM-/PF-/PWM-/PWF-Type) PCX-xxx-X635-xx/X
6.35mm (P-/PM-/PF-Type) PCX-xxx-X635-xx/X
