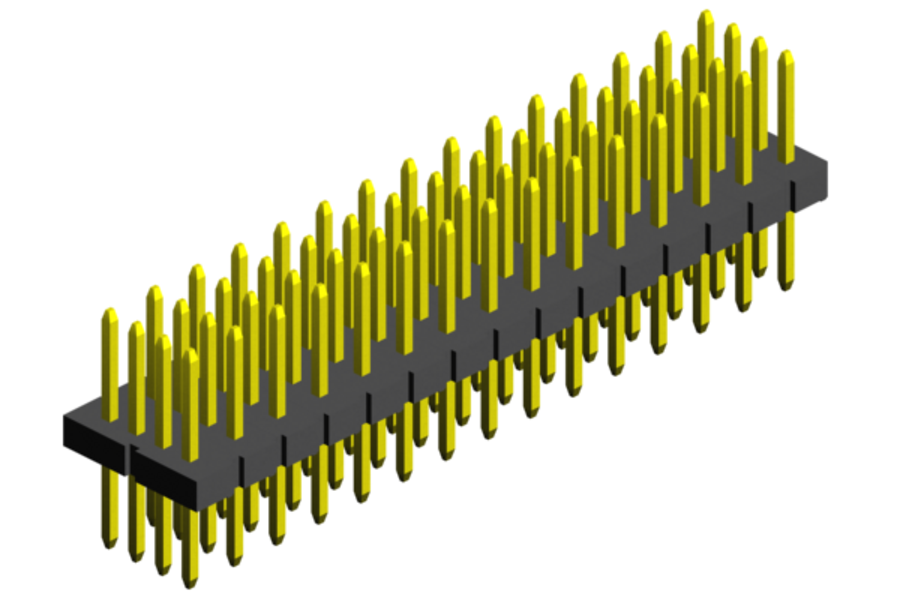

Through-hole soldering (THT) - vertical pin headers

Single row, double row and three rows with a variety of standard dimensions of the soldering and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your "Design-In" you will find on the pages with "additional data".

Available pitch: 1.00mm / 1.27mm / 2.00mm / 2.54mm / 5.08mm

Through-hole soldering (THT) - vertical pin headers
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.00mm SL2-xxx-Sxxx/x-xx/00
1.27mm (1-row) SL1-xxx-B083/x-xx/11
1.27mm (1- and 2-row) SLx-xxx-S0xx/x-xx/11
1.27mm x 2.54mm SLx-xxx-Sxxx/xx-xx/1
2.00mm SLx-xxx-Xxxx/xx-xx/2
2.54mm SLx-xxx-SXxxx/xx-xx
5.08mm SL1-xxx-Sxxx/xx-xx/5

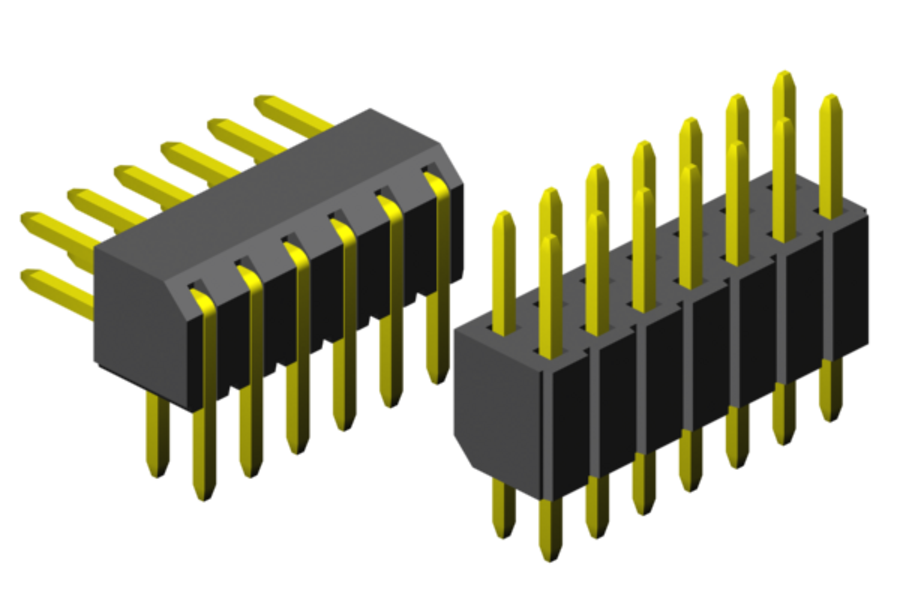

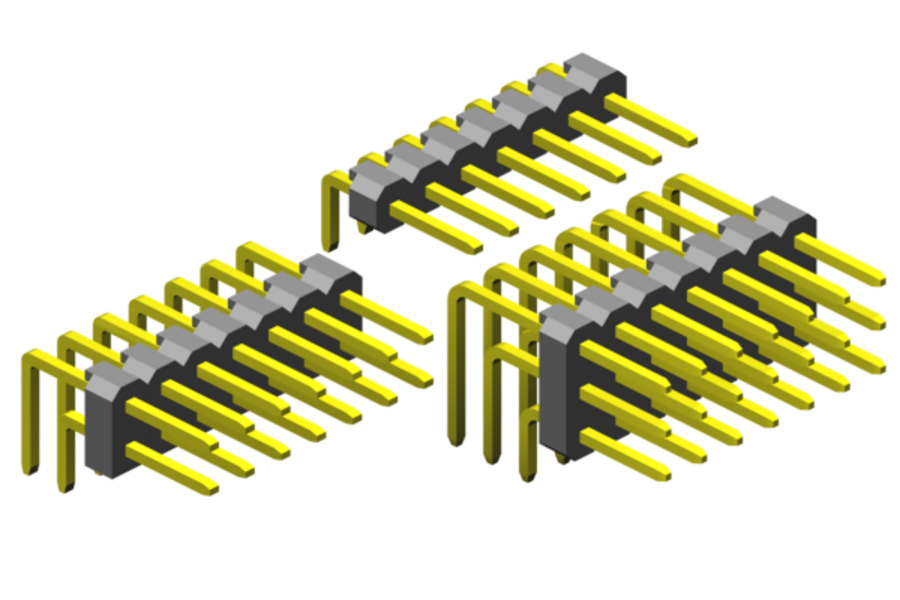

Through-hole soldering (THT) - horizontal pin headers

Single row, double row and three rows with a variety of standard dimensions of the soldering and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your "Design-In" you will find on the pages with "additional data".

Available pitch: 1.27mm / 2.00mm / 2.54mm

Through-hole soldering (THT) - horizontal pin headers
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.27mm SLx-xxx-R071/x-xx/11
1.27mm x 2.54mm SL2-xxx-Rxxx/xx-xx/1
2.00mm SLx-xxx-Rxxx/xx-xx/2
2.54mm SLx-xxx-Xxxx/xx-xx

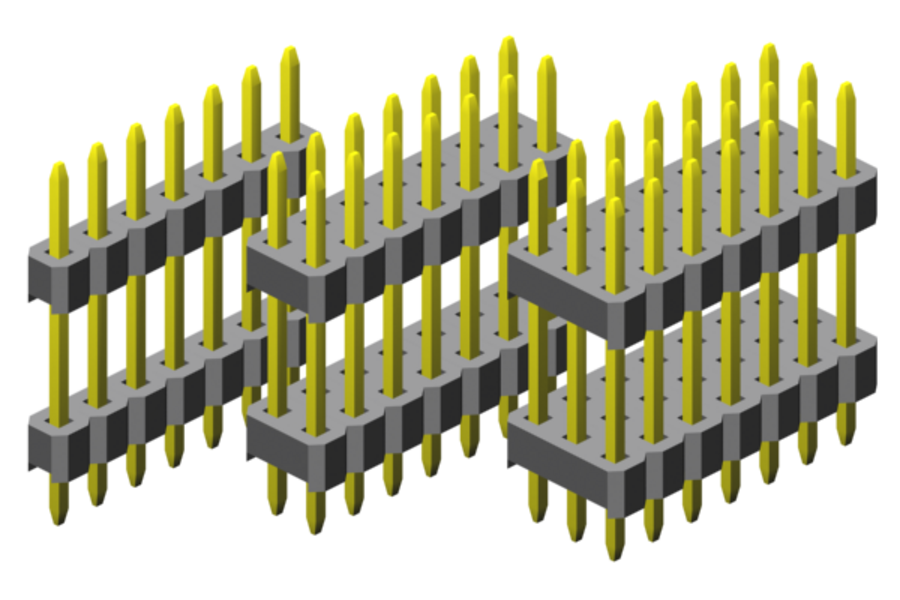

Through-hole soldering (THT) - "double plastic board spacer" pin headers

Single row, double row and three rows with a variety of standard dimensions of the soldering and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your "Design-In" you will find on the pages with "additional data".

Available pitch: 1.00mm / 1.27mm / 2.00mm / 2.54mm

Through-hole soldering (THT) - "double plastic board spacer" pin headers
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.00mm SP2-xxx-H51/x-xx/00X
1.27mm SPx-xxx-Xxxx/x-xx/11
1.27mm x 2.54mm SPx-xxx-Sxxx/xx-xx/1
2.00mm SPx-xxx-Xxxx/xx-xx/2
2.54mm SPx-xxx-Sxxx/xx-xx

Through-hole soldering (THT) - High Base Board-to-Board pin headers

Double row horizontal and vertical with a variety of standard dimensions of the soldering and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your "Design-In" you will find on the pages with "additional data".

Available pitch: 2.00mm / 2.54mm

Through-hole soldering (THT) - High Base Board-to-Board pin headers
show details
Pitch Series Download Download Additional 3D / IGES / STEP
2.00mm SE2-xxx-Xxxx-xx/2
2.54mm SE2-xxx-Xxxx-xx

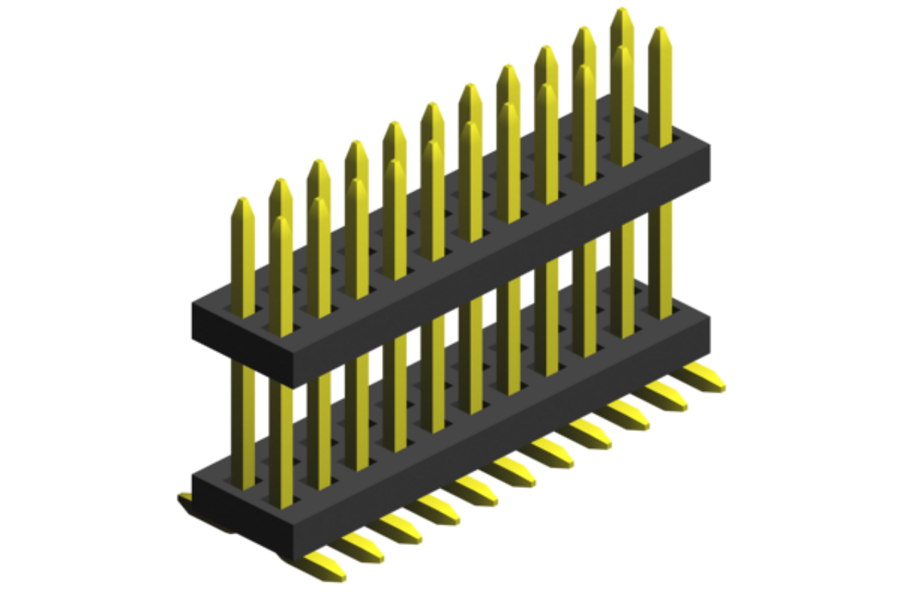

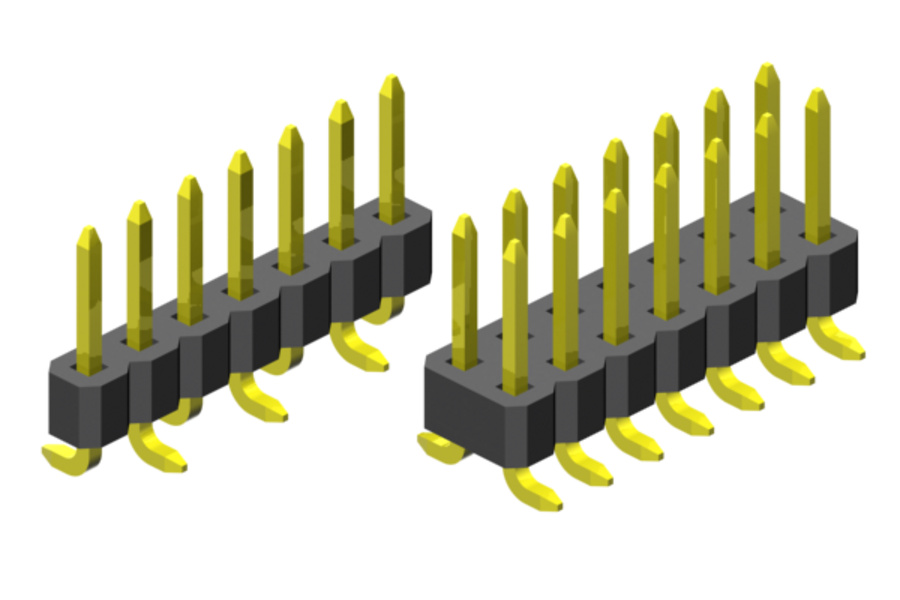

Surface-mount soldering (SMT) - vertical pin headers

Single row and double row with a variety of standard dimensions of the height and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your "Design-In" you will find on the pages with "additional data".

Available pitch: 1.00mm (only double row) / 1.27mm / 2.00mm / 2.54mm

Surface-mount soldering (SMT) - vertical pin headers
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.00mm SS2-xxx-H18/x-xx/00X
1.27mm SS2-xxx-Hxx/x-xx/11X
1.27mm x 2.54mm SSx-xxx-H38x/x-xx/1X
2.00mm SS2-xxx-Hx85/x-xx/2X
2.00mm SS2-xxx-HX0xx/x-xx/2X
2.54mm SSx-xxx-X14x/xx-xxX

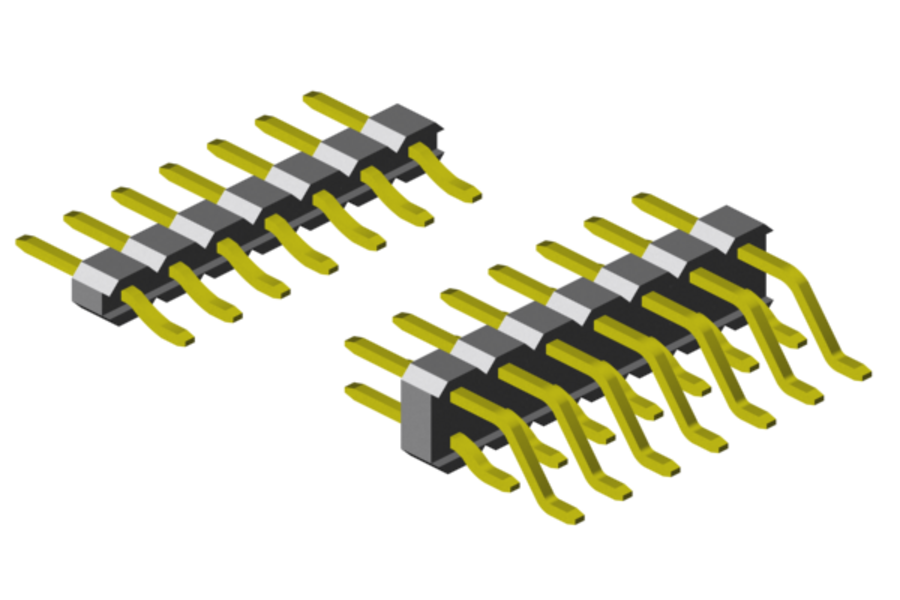

Surface-mount soldering (SMT) - horizontal pin headers

Single row and double row with different standard pin lengths of the plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your "Design-In" you will find on the pages with "additional data".

Available pitch: 1.27mm / 2.00mm / 2.54mm

Surface-mount soldering (SMT) - horizontal pin headers
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.27mm SR2-xxx-H12/xx-xx/11X
2.00mm SRx-xxx-Hxxx/x-xx/2X
2.54mm SRx-xxx-H135/xx-xxX

Surface-mount soldering (SMT) - "board spacer" pin headers

Single row and double row with a variety of standard dimensions of the board-to-board and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your "Design-In" you will find on the pages with "additional data".

Available pitch: 1.00mm / 1.27mm / 2.00mm / 2.54mm

Surface-mount soldering (SMT) - "board spacer" pin headers
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.00mm SP2-xxx-H51/x-xx/00X
1.27mm SP2-xxx-H2x/x-xx/11X
1.27mm x 2.54mm SP2-xxx-H220/x-xx/1X
2.00mm SX2-xxx-HX06x/x-xx/2X
2.54mm SPx-xxx-H16x/xx-xxX

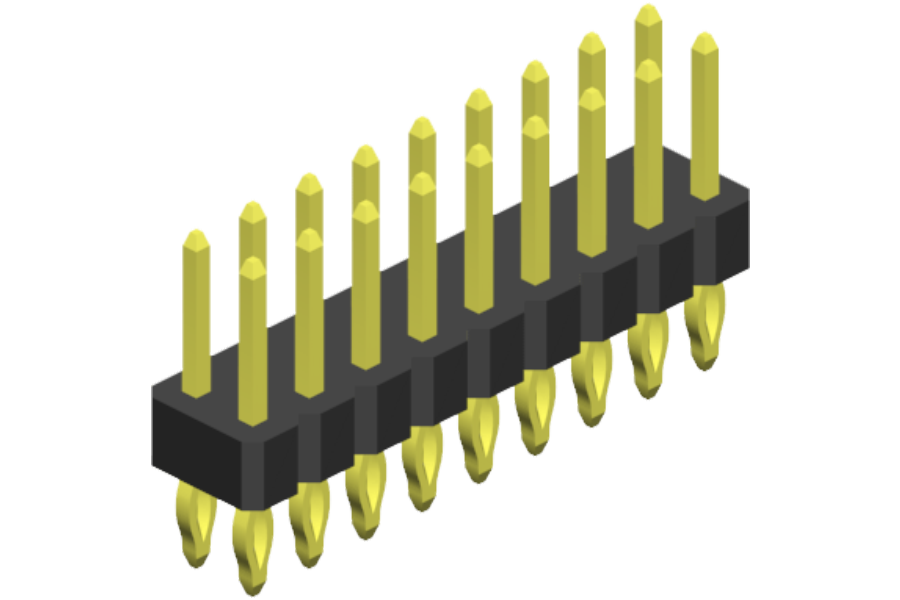

PressFit pin headers

Series: SLx-xxx-SHPxxx/xx-xx

When it comes to a shock and vibration-proof connection, the PressFit connectors are the right choice. Not only the high reliability but also the solderless mounting characterize these connectors.

Available pitch: 2.54mm

PressFit pin headers

PC-104+

Series: SL4-xxx-S830/x-xx/2

Designed for “board to board” small spacing interconnection. Variable terminal length available. With standoff’s for post solder cleaning. Mate with Female Header BL4-xxx-–S630/x-xx/2

Pitch

2.00mm

Download

PC-104+

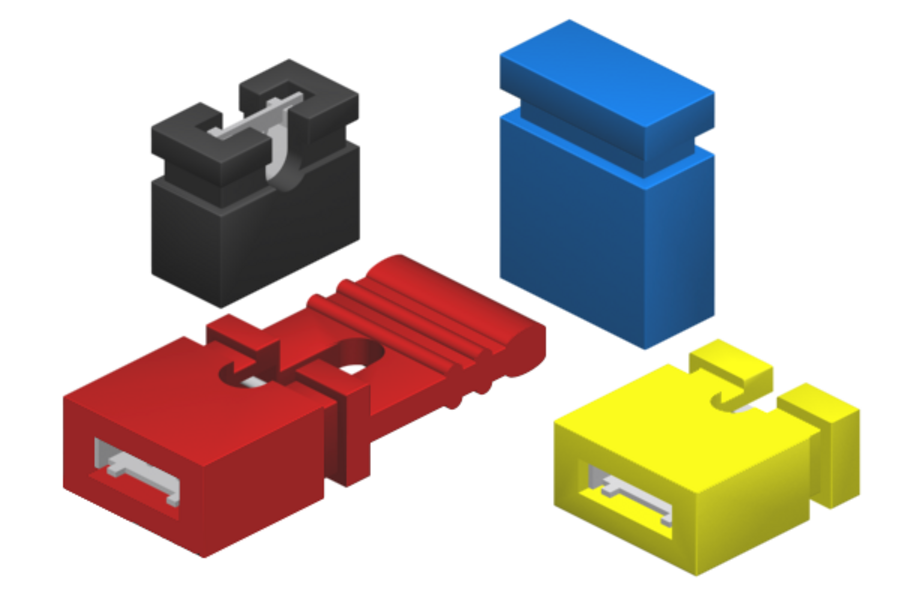

Jumper and shorting links

Series: JPx-xxx

Jumper and shorting links

Pitch

1.27mm
2.00mm
2.54mm
5.08mm

Download

Jumper and shorting links
