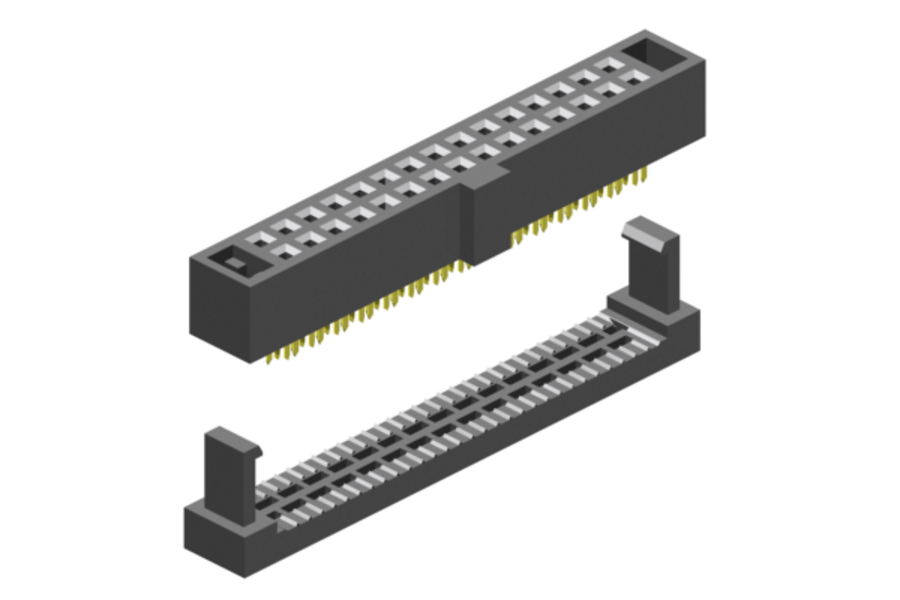

IDC female header
IDC socket strip in the pitch dimensions
- 1.27mm suitable for AWG30 flat ribbon cable (0.635mm pitch)
Also suitable for the E-tec box header of the series -X 510 - 2.00mm suitable for AWG26 & 28 flat ribbon cable (1.00mm pitch)
Also suitable for the E-tec box header of the series -X 562 - 2.54mm suitable for AWG28 & 30 flat ribbon cable (1.27mm pitch)
Also suitable for the E-tec Box header series -X 103-, -X 920- & -H885- as well as the DIN header (DIN 41 651) of the series -X100-
| Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
|---|---|---|---|---|
| 1.27mm | IDS-xxx-W050-xx/X | |||
| 2.00mm | IDS-xxx-X200-N5/X | |||
| 2.54mm | IDS-xxx-X100-N5/X |

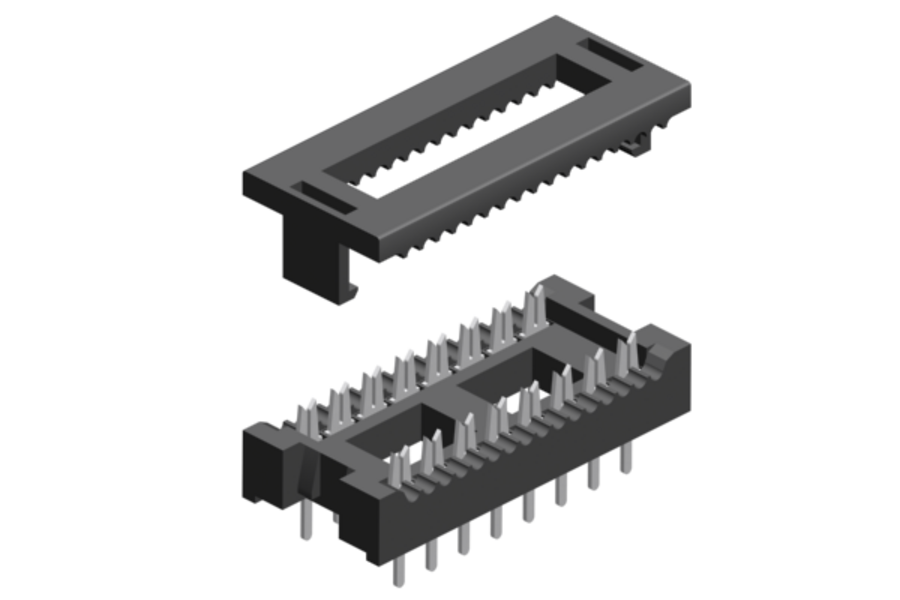

DIP Plugs
A perfect solution to connect flat-ribbon cables with a pitch of 1.00mm or 1.27mm with a PC board. These plugs have a height of only 6.00mm above the board and are available as plugs for base mounting or direct soldering.
| Pitch | Series | Download | Download Additional | 3D / IGES / STEP |
|---|---|---|---|---|
| 2.00mm | IDP-xxx-S200-N5 | |||
| 2.54mm | IDP-xxx-Sx00-N5 |

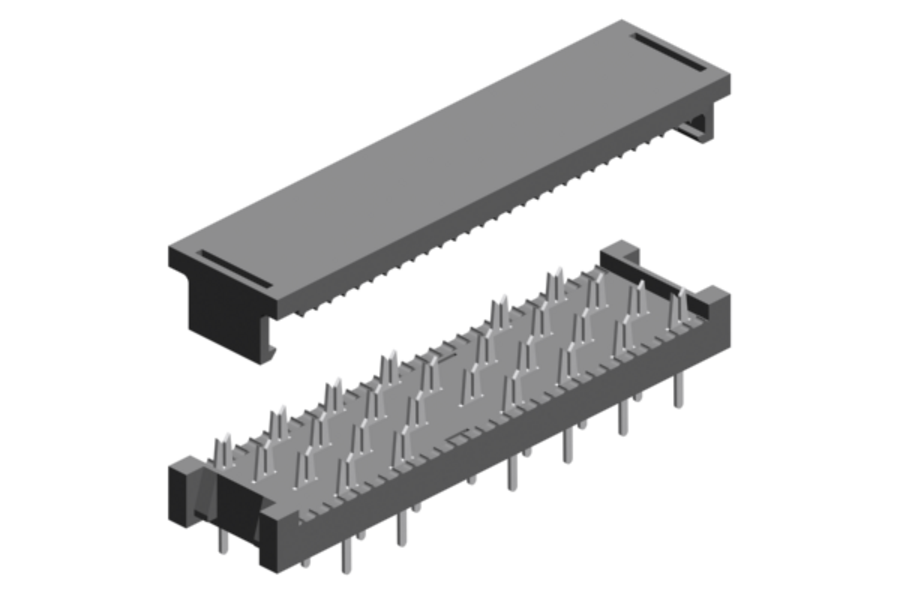

"transition" connectors
Series: IDP-xxx-T050-xx
Through-hole soldered connectors to connect 1.27mm flat ribbon cables to a PC board. This 4-row connector, spacing per row 2.54mm, has 10 or 40 poles, the same width of 10.00mm and a height of only 5.80mm above the board.

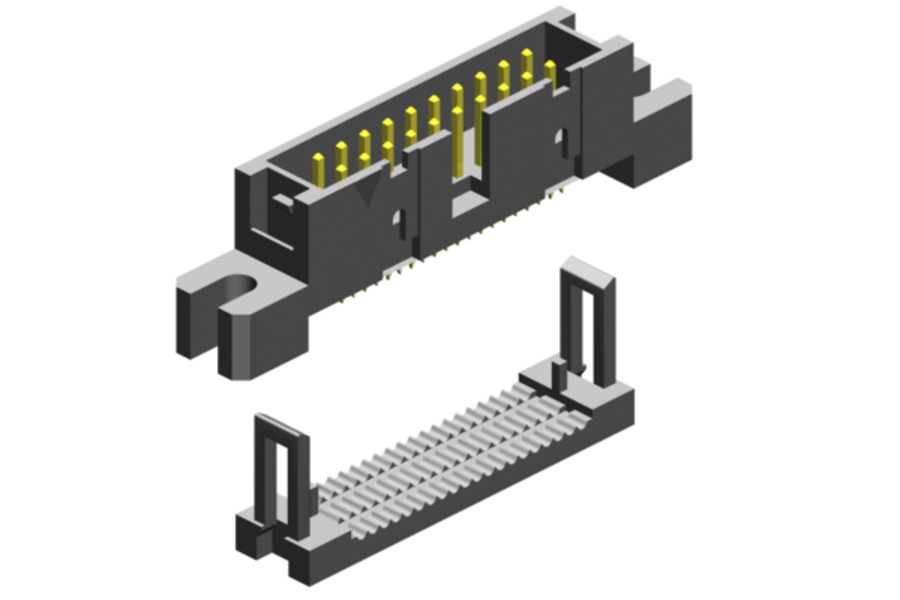

IDC Box Header
Series: IDH-xxx-X100-N5
IDC Box (shrouded) header, without ejector in pitch 2.54mm. These headers, available with or without mounting flange, can be attached to the E-tec female header of the series BW2-xxx-X850-xx-55/P, but also the E-tec IDC connector strips of the series IDS-xxx-X100-N5/P.

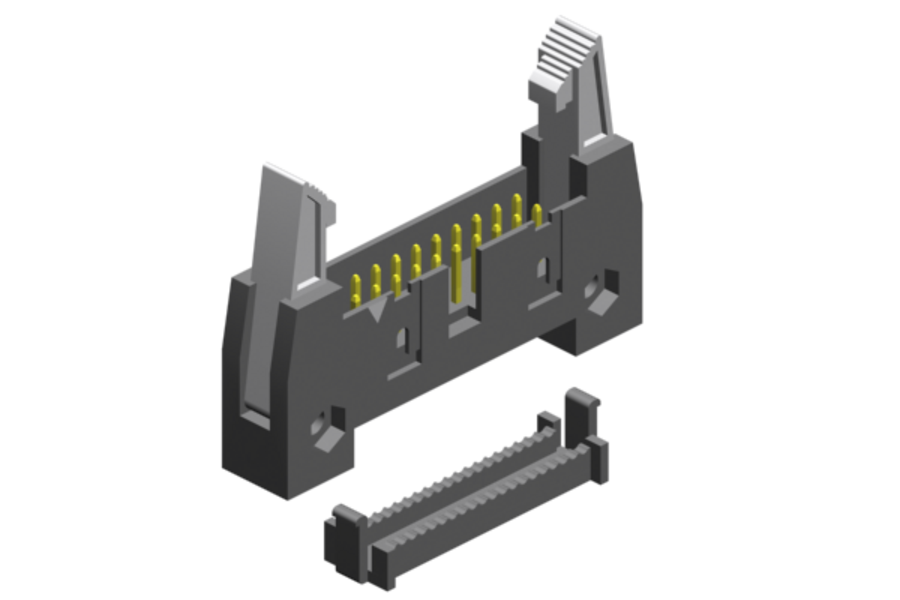

IDC DIN Header (DIN 41 651)
Series: IDD-xxx-X100-N5
IDC DIN header, with ejector in pitch 2.54mm. These headers, available with short or long ejectors, easily accommodate the IDC-X100-N5/P series E-tec IDC connector strips.

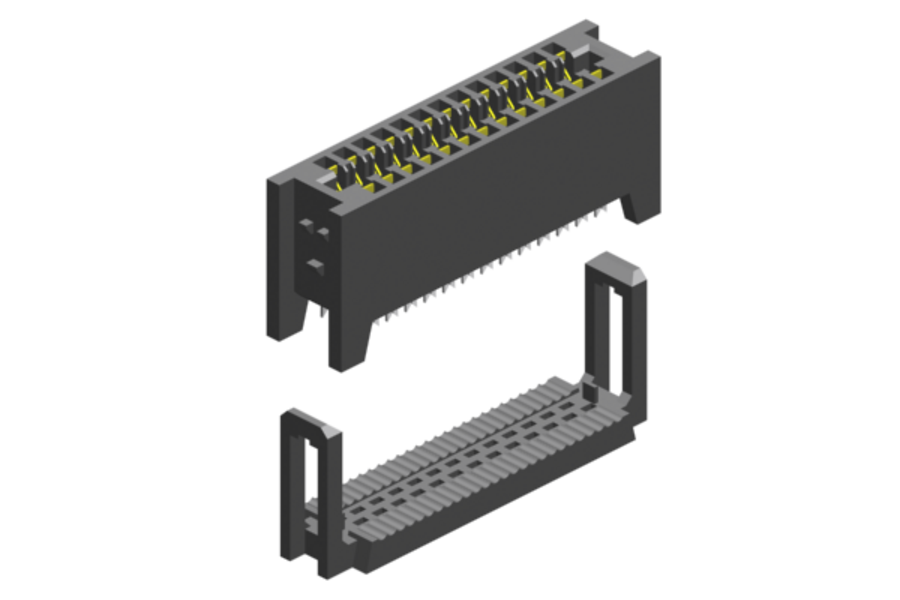

IDC "card edge" connectors
Series: IDC-xxx-X100-N5
The IDC "card edge" connectors for flat-ribbon cables with 1.27mm pitch, have a highly reliable double contact to provide secure PCB connections. PCB thicknesses from 1.38mm to 1.78mm are supported.
