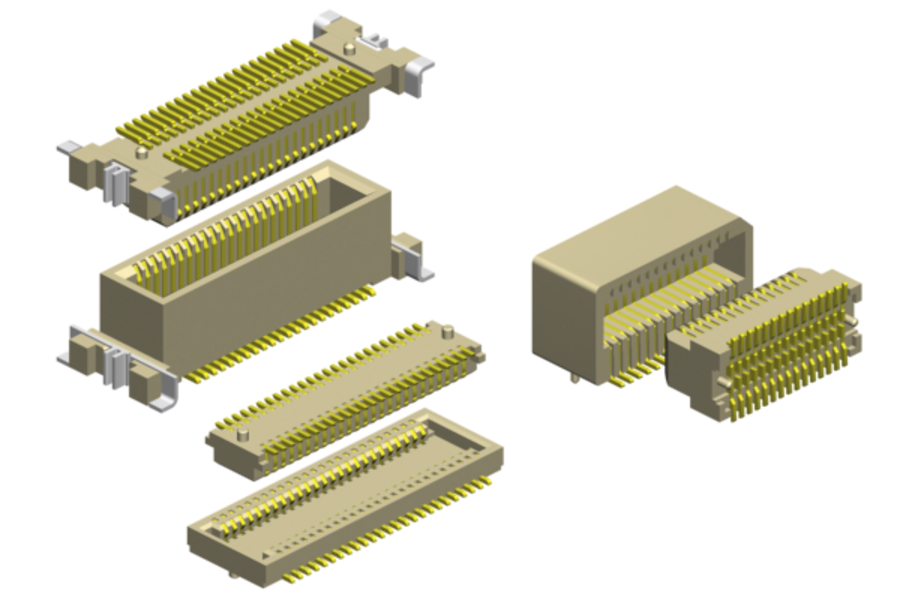

Fine Pitch Plug Board Connectors

Due to the wide variety of requirements (pin count, board height, grid, soldering surfaces, etc.), these Fine Pitch Board-to-Board connectors are adapted to the specific requirements of your project using the following general E-tec data sheet. On the basis of this information, our production will be able to determine whether the existing tools can be adapted to your requirements or whether new tools are needed. Perhaps equivalents can also be offered as an alternative.

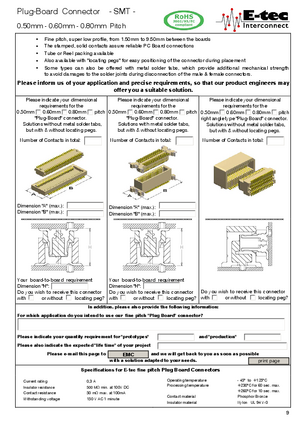

Please open the Plug Board Design page and enter your wishes. We will submit appropriate proposals to your application. However, sending this page is only possible if at least Adobe Acrobat 7 is installed on your computer. Otherwise print out the filled out page and send it via FAX.

Pitch

0.50mm
0.60mm
0.80mm

Download

  • Fine Pitch Plug Board Connectors
Fine Pitch Plug Board Connectors
