1.00mm versions

Series: CRX-xxx-X100-xx/X

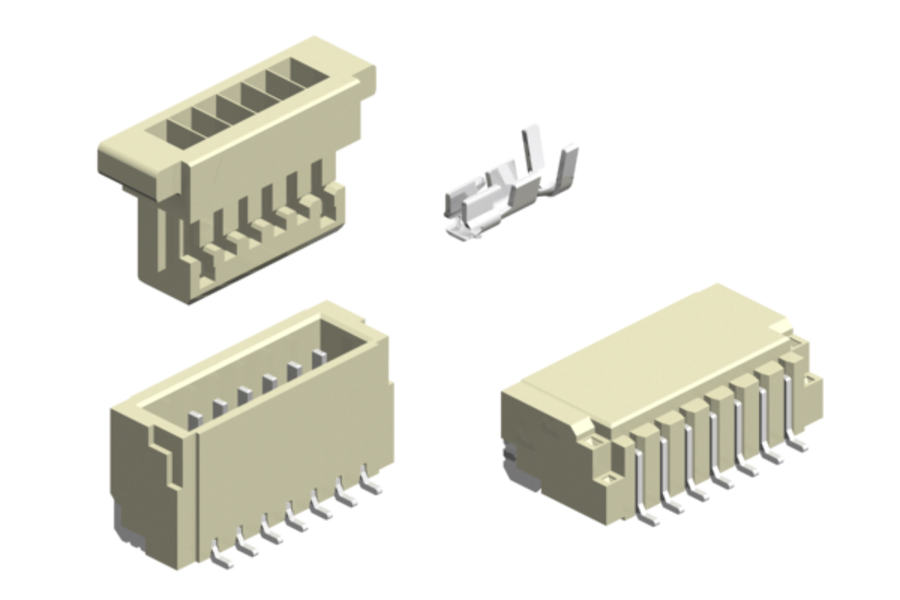

Currently the smallest pitch, the E-tec L-Type 1-row, compatible with the JST "SH series". The male header, in surface mount (SM) technology, vertical and horizontal. Matching the plug with crimp contacts for AWG28 to AWG32 cable. More 1.00mm versions on request.

Pitch

1.00mm

Download

1.00mm versions

1.25mm versions

Series: CRX-xxx-X125-xx/X

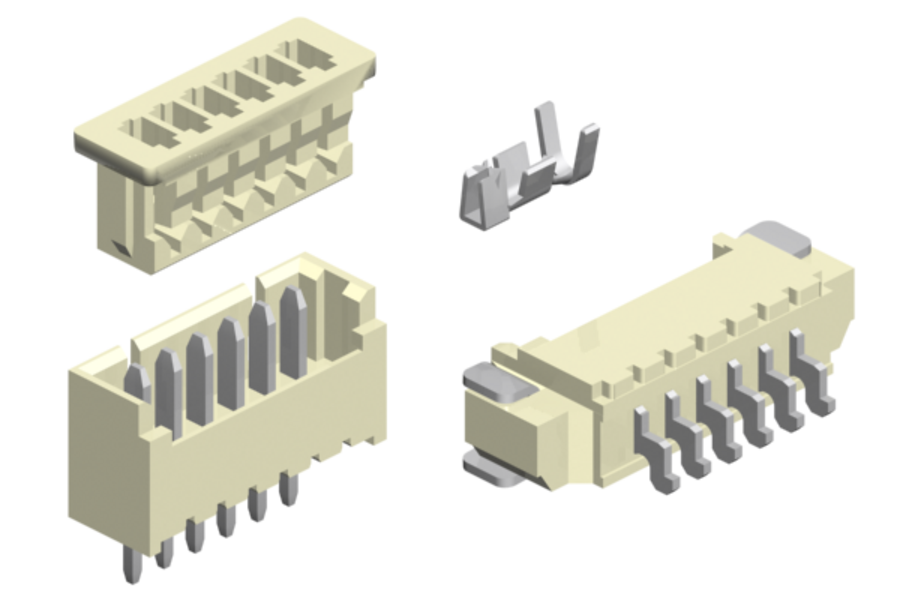

Two 1-row and 2-row versions are available. 1-row the S-Type, THT (soldering technique) vertical and horizontal, as well as the C-Type SMT (surface mount technique) vertical and horizontal. For both versions the matching plug with crimp contacts for AWG28 to AWG32 cable 2-row the G-Type, THT (soldering technique) vertical and horizontal. For this purpose the matching plug with crimp contacts for AWG28 to AWG32 cable. More 1.25mm versions on request.

Pitch

1.25mm

Download

1.25mm versions

1.50mm versions

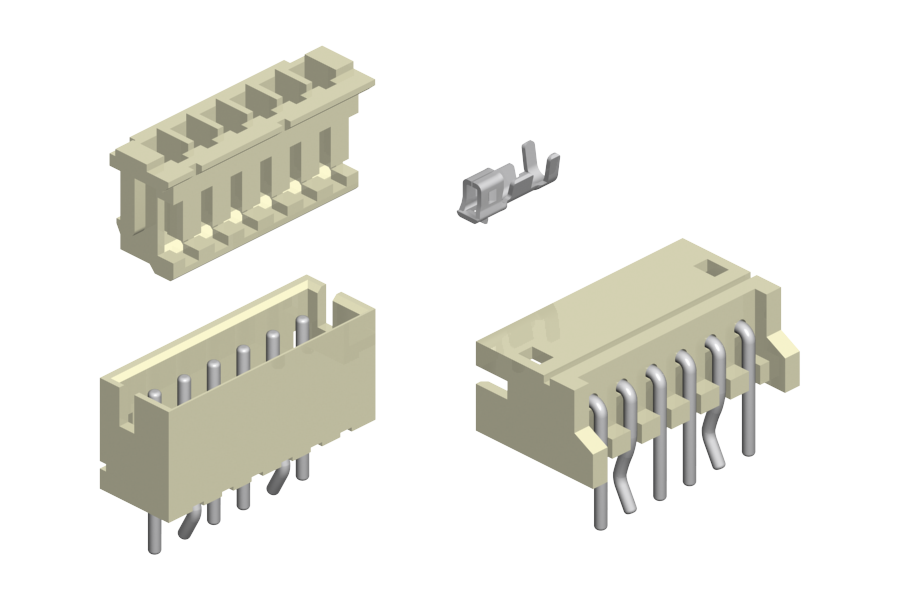

Series: CRX-xxx-X150-99/X

More 1.50mm versions on request.

Pitch

1.50mm

Download

1.50mm versions

2.00mm versions

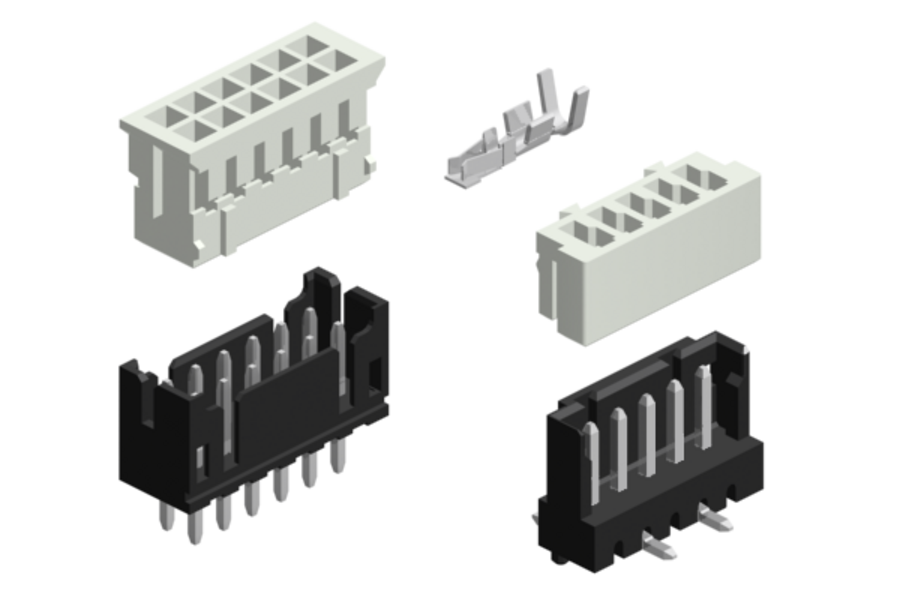

Compatible to the JST "PH-series", E-tec offers the O-type 1-row, and the H-type 2-row to the JST "PHD-series". Both types only in THT (soldering technique), vertical and horizontal. For this purpose the matching plugs with crimp contacts, 1-row for AWG26 to AWG30, and 2-row for AWG22 to AWG28 cable. The E-tec C-type, 1-row THT (soldering technique) vertical and horizontal, as well as SMT (Surface Mount Technology), is compatible with the Tyco "CT-series". Also for this purpose the matching plug with crimp contacts for AWG22 to AWG26 cable. The plug (1 and 2 rows), H-type, with crimp contacts for AWG26 to AWG30 cable is suitable for plugging on pin headers with 0.64x0.64mm pins. More 2.00mm versions on request.

2.00mm versions
show details
Pitch Series Download Download Additional 3D / IGES / STEP
2.00mm (O-/H-Type) CRX-xxx-X200-xx
2.00mm (D-/C-/SC-Type) CRX-xxx-X200-xx/X
2.00mm (K-/P-/SH-Type) CRX-xxx-X200-xx/X

2.50mm versions

Series: CRX-xxx-X250-xx

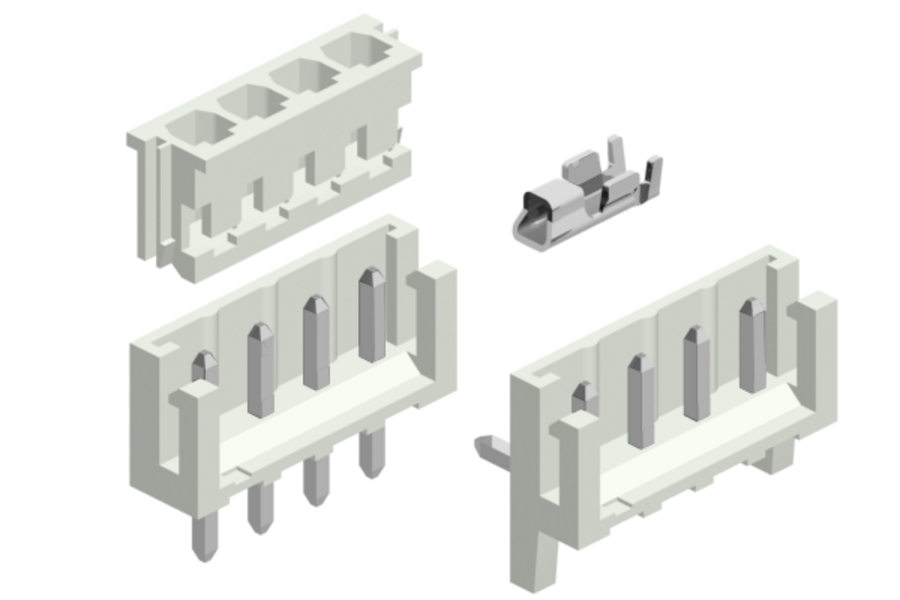

E-tec also offers some competing compatibles. The P-type, for example, corresponds to the Tyco "EI-series", and the K-type to the JST "XA-series". Both types only in THT (soldering technique), vertical and horizontal. For this, the suitable plugs with crimp contacts for AWG22 to AWG28 cables. More 2.50mm versions on request.

Pitch

2.50mm

Download

2.50mm versions

2.54mm versions

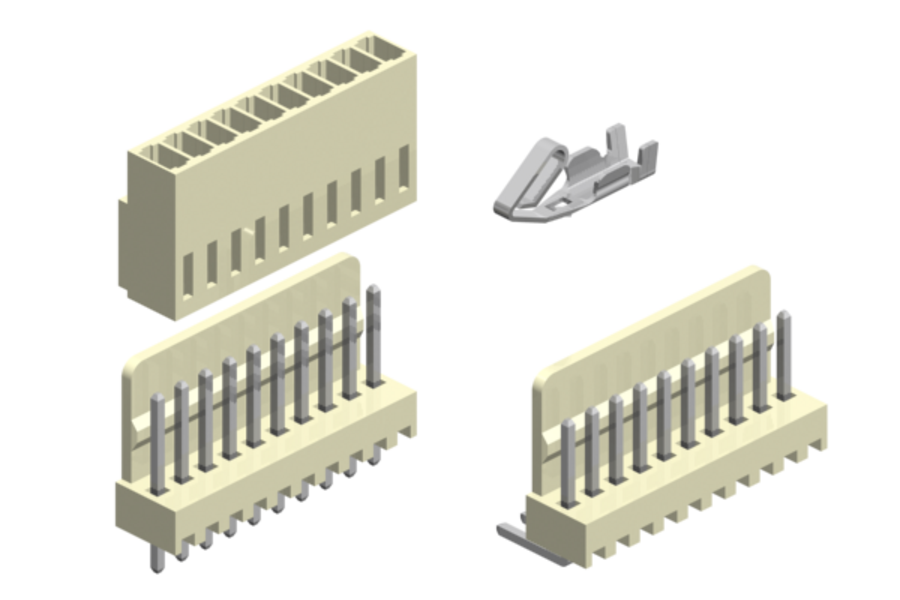

E-tec's F-type, 1-row vertical and horizontal in THT (Through-hole technique) as "Friction Lock". For this purpose the plug with crimp contacts for AWG22 to AWG28 cable. The H-types, 1 and 2-row plugs with crimp contacts for AWG22 to AWG28 cables, can be plugged on pin headers, or box headers with coding. The pins should have a dimension of 0.64mmx0.64mm. More 2.54mm versions on request.

2.54mm versions
show details
Pitch Series Download Download Additional 3D / IGES / STEP
2.54mm (UT-/P-/SP-Type) CRX-xxx-X254-xx
2.54mm (F-/H-Type) CRX-xxx-X254-xx
