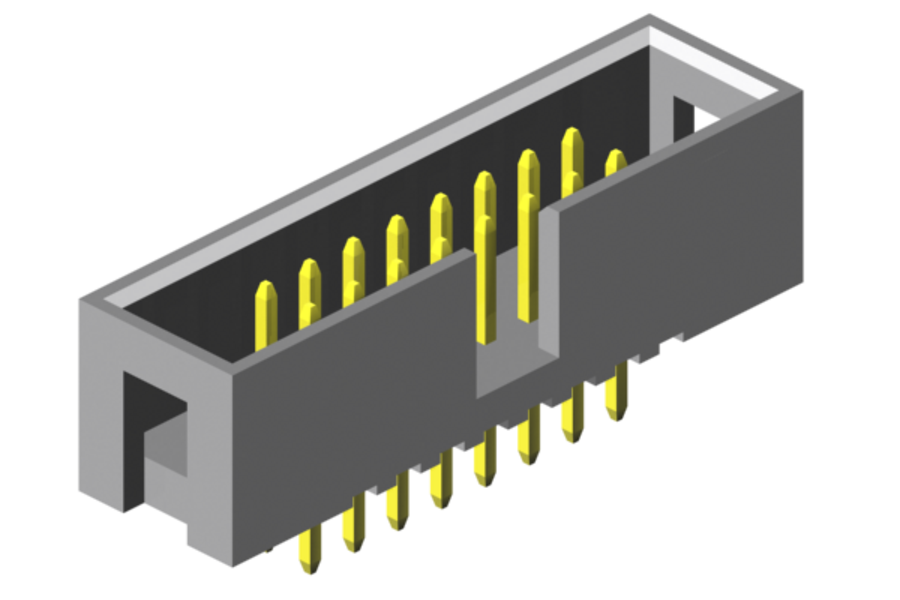

Through-hole soldering (THT) - vertical box header

Double row box header (shrouded) vertical. Suitable for "board to board" connections, but also for the connection of IDC cable connectors.

Available pitch: 1.27mm / 2.00mm / 2.54mm

Through-hole soldering (THT) - vertical box header
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.27mm SLS-xxx-S535-xx/11
1.27mm SLS-xxx-S510-xx/11X
2.00mm SLS-xxx-S562-xx/2
2.54mm SLS-xxx-S920-xx

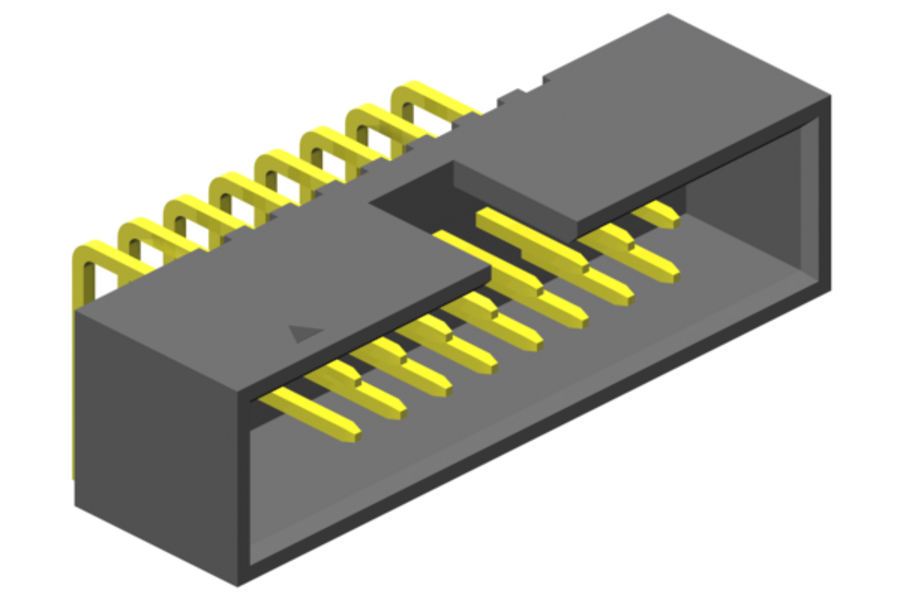

Through-hole soldering (THT) - horizontal box header

Double row box header (shrouded) horizontal. Suitable for "board to board" connections, but also for the connection of IDC cable connectors.

Available pitch: 1.27mm / 2.00mm / 2.54mm

Through-hole soldering (THT) - horizontal box header
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.27mm SLS-xxx-R565/x-xx/11
1.27mm SLS-xxx-R510-xx/11X
2.00mm SLS-xxx-R562-xx/2
2.54mm SLS-xxx-R920-xx

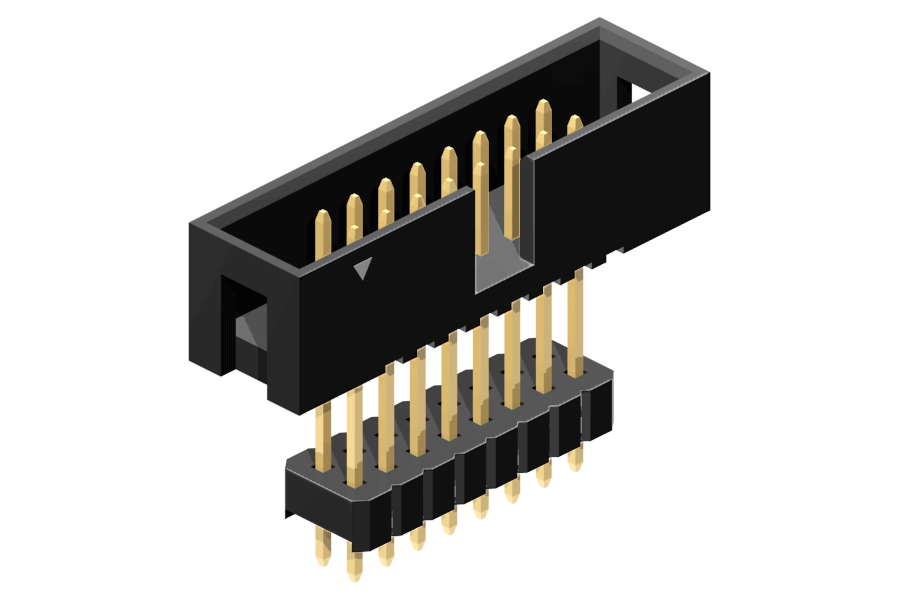

Through-hole soldering (THT) - raised box header

Double row box header (shrouded) vertical / raised. Suitable for "board to board" connections, but also for the connection of IDC cable connectors.

Available pitch: 1.27mm / 2.00mm / 2.54mm

Through-hole soldering (THT) - raised box header
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.27mm SLS-xxx-P535-xx/11
2.00mm SLS-xxx-D762/xx-xx/2
2.54mm SLS-xxx-Dxxx-xx

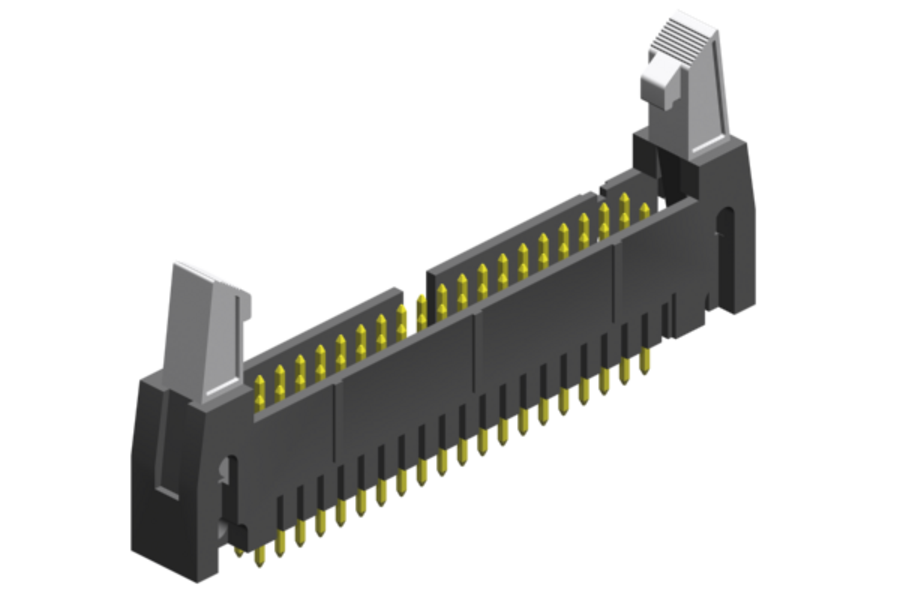

Through-hole soldering (THT) - DIN 41 651 Header

Series: DHX-xxx-X100-xx

DIN 41 651 headers in through-hole and surface-mount technology with and without plastic ejectors



  • vertical
  •

  • horizontal
  •

Pitch

2.54mm

Download

Through-hole soldering (THT) - DIN 41 651 Header

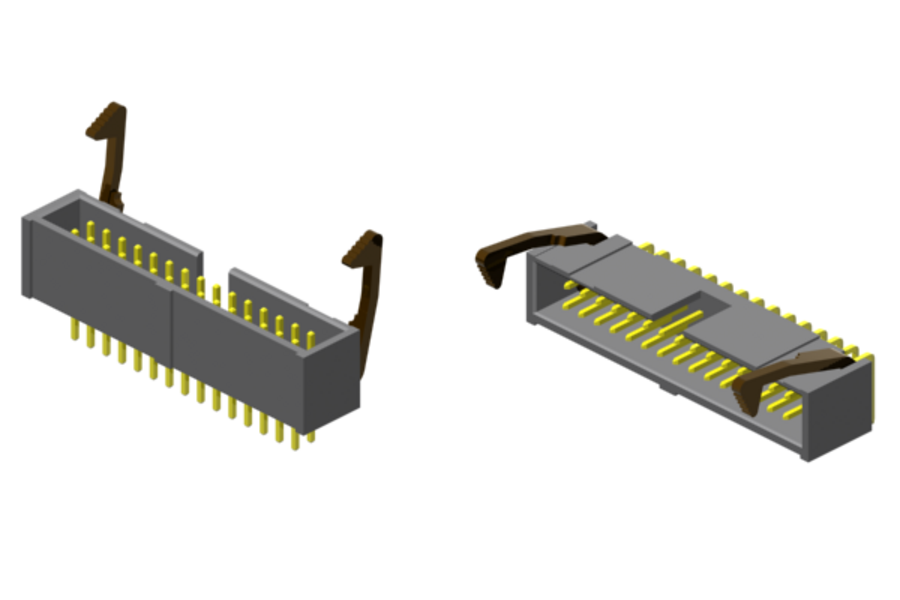

Through-hole soldering (THT) - Box Header with metal ejector

Series: SLS-xxx-X103/xx

Box headers in through-hole and surface-mount technology with and without metal ejectors



  • vertical
  •

  • horizontal
  •

Pitch

2.54mm

Download

Through-hole soldering (THT) - Box Header with metal ejector

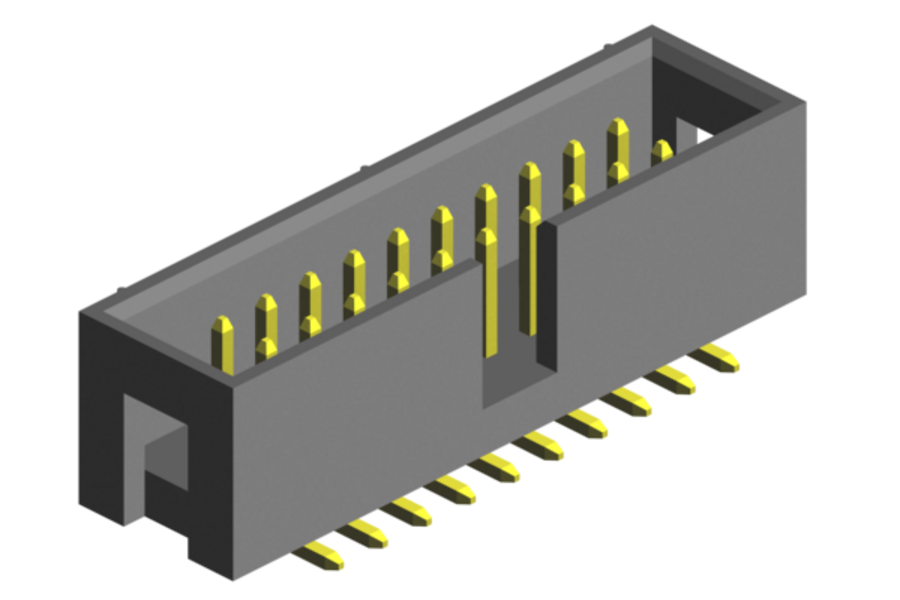

Surface-mount soldering (SMT) - Box Header

Double row box header (shrouded) vertical. Suitable for "board to board" connections, but also for the connection of IDC cable connectors.

Available pitch: 1.27mm / 2.00mm / 2.54mm

Surface-mount soldering (SMT) - Box Header
show details
Pitch Series Download Download Additional 3D / IGES / STEP
1.27mm SLS-xxx-Hxxx-xx/11X
1.27mm SLS-xxx-H510-xx/11X
2.00mm SLS-xxx-H562-xx/2X
2.54mm SLS-xxx-H885-xx/X

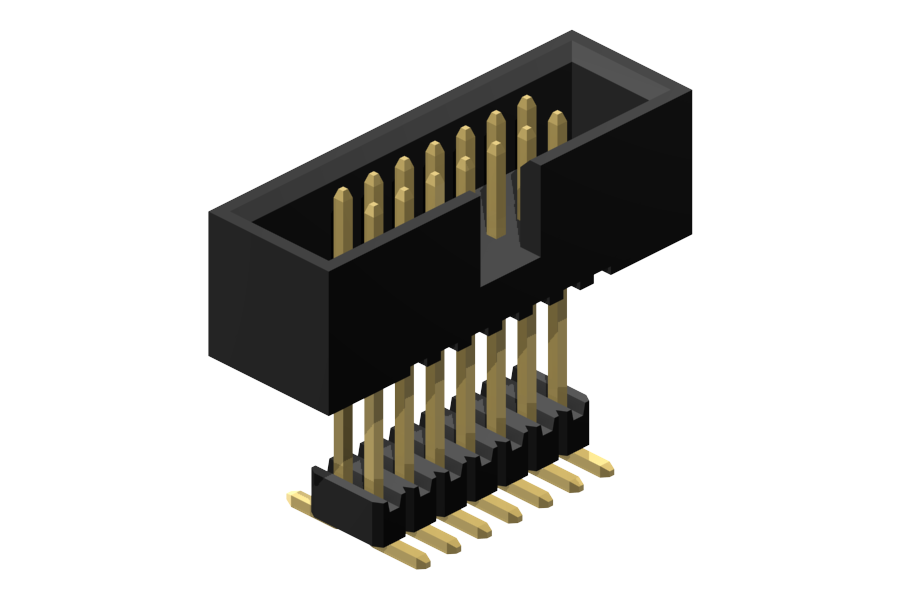

Surface-mount soldering (SMT) - raised box header

Series: SLS-xxx-HPxx-xx/11X

Double row box header (shrouded) vertical / raised. Suitable for "board to board" connections, but also for the connection of IDC cable connectors.

Available pitch: 1.27mm

Pitch

1.27mm

Download

Surface-mount soldering (SMT) - raised box header
